ProChem® Solid Cover Process Chemical Tanks

LDPE

Available upon request – additional charges may apply:
XLPE
PPL
PVDF

      Save

      Save

      Save

      Save

      Save

      Our ProChem®  Solid Cover Process Chemical Tanks are also available with open tops.

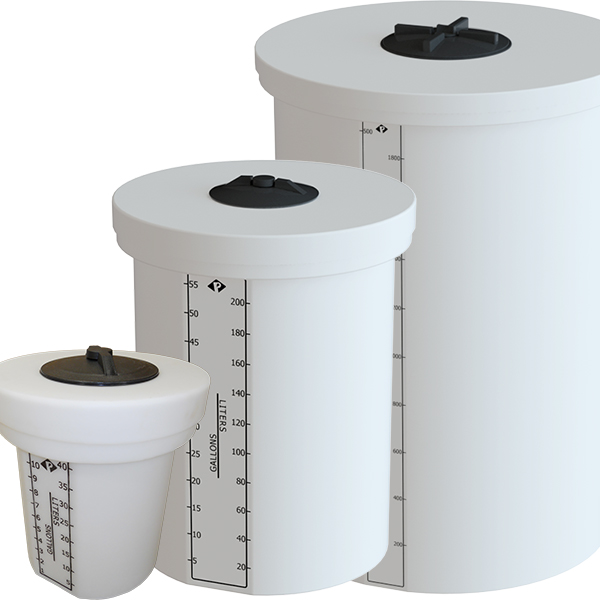

      The Cylindrical Solid Cover Process Chemical Tanks are equipped with a threaded twist lid for applications where a removable cover is not desired. Flat side of wall with molded in calibration charts for quick level indication available on tanks that come standard with lid. Black lettering is available on these tanks at an additional charge.

      Other than the solid cover, all other features are the same as our ProChem® Open Top Process Chemical Tanks.

        ProChem® Solid Cover Process Chemical Tanks made from these materials are † NSF/ANSI 61 Compliant:

      • LDPE are available WQA Gold Seal NSF/ ANSI 61 compliant
      • XLPE 40 gallons and up are available WQA GoldSeal NSF/ ANSI 61 compliant

      Do not use Tanks for Fuel Storage!

      To create your setup, look at the various sizes we have below. You can then contact a Distributor or Rep in your area to complete the process of ordering. If image is available, hover over for larger view. If PDF drawing is available – click to download.

      ImageTank Size† LDPE PNXLPE PNLid SizeShell DiameterLid DiameterOAHWeightPDF
      Closed Top Tank 5 Gallon Peabody Engineering
      5 Gallon / 19 Liter01-3035301-304098 in / 20.32 cm12 in / 30.48 cm16 in / 40.64 cm19 in / 48.26 cm9 Lbs / 4 KgPDF Document
      Closed Top Tank 10 Gallon Peabody Engineering
      10 Gallon / 38 Liter01-3035401-304108 in / 20.32 cm15 in / 38.10 cm19 in / 48.26 cm22 in / 55.88 cm12 Lbs / 5 KgPDF Document
      Closed Top Tank 15 Gallon Peabody Engineering
      15 Gallon / 57 Liter01-3035501-304118 in / 20.32 cm15 in / 38.10 cm27.5 in / 69.85 cm29.5 in / 74.93 cm16 Lbs / 7 KgPDF Document
      Closed Top Tank 30 Gallon Peabody Engineering
      30 Gallon / 114 Liter01-3035601-304128 in / 20.32 cm18 in / 45.72 cm22 in / 55.88 cm36.5 in / 92.71 cm20 Lbs / 9 KgPDF Document
      Closed Top Tank 55 Gallon Peabody Engineering
      55 Gallon / 208 Liter01-30357† 01-304138 in / 20.32 cm24 in / 60.96 cm28 in / 71.12 cm36.5 in / 92.71 cm30 Lbs / 14 KgPDF Document
      Closed Top Tank 100 Gallon Peabody Engineering
      100 Gallon / 379 Liter01-30358† 01-304148 in / 20.32 cm30 in / 76.20 cm34 in / 86.36 cm41.50 in / 105.41 cm60 Lbs / 27 KgPDF Document
      Closed Top Tank 150 Gallon Peabody Engineering
      150 Gallon / 568 Liter01-30359† 01-304158 in / 20.32 cm30 in / 76.20 cm34 in / 86.36 cm58.5 in / 148.59 cm75 Lbs / 34 KgPDF Document
      Closed Top Tank 200 Gallon Peabody Engineering
      200 Gallon / 757 Liter01-30360† 01-3041616 in / 40.64 cm34 in / 86.36 cm38 in / 96.52 cm60.5 in / 153.67 cm95 Lbs / 43 KgPDF Document
      Closed Top Tank 300 Gallon Peabody Engineering
      300 Gallon / 1136 Liter01-30361† 01-3041716 in / 40.64 cm48 in / 121.92 cm53 in / 134.62 cm47.5 in / 120.65 cm112 Lbs / 51 KgPDF Document
      Closed Top Tank 400 Gallon Peabody Engineering
      400 Gallon / 1514 Liter01-30362† 01-3041816 in / 40.64 cm48 in / 121.92 cm53 in / 134.62 cm60.5 in / 153.67 cm145 Lbs / 66 KgPDF Document
      Closed Top Tank 500 Gallon Peabody Engineering
      500 Gallon / 1893 Liter01-30363† 01-3041916 in / 40.64 cm48 in / 121.92 cm53 in / 134.62 cm74.5 in / 189.23 cm175 Lbs / 79 KgPDF Document



      All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
      Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
      Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
