PCO and Loaf Tanks

Polyethylene

      PCO and Loaf Tanks

      Consider using these PCO and Loaf Tanks, look below for description of each and in the table for sizes.

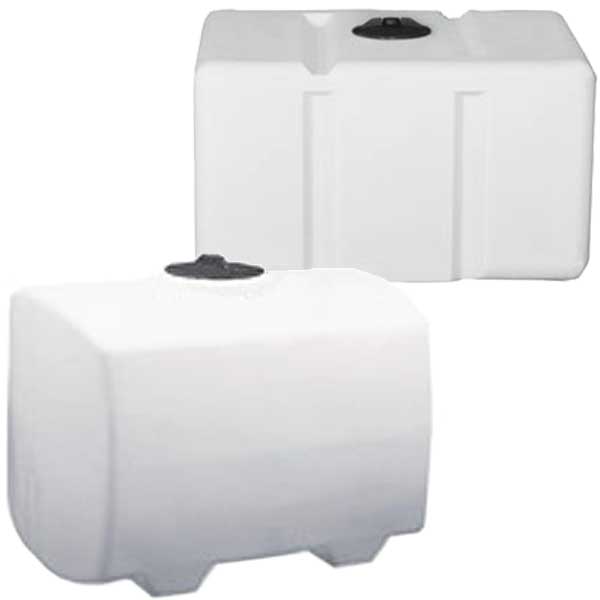

      PCO TankPCO Tanks
      A multi-purpose tank, the PCO is well suited for nursery, agricultural and lawn care applications. These tanks feature self-supporting legs and do not require any saddles or steel supports. Flat spots are molded into both ends to provide mounting areas for agitation equipment.





      Loaf TankLoaf Tanks
      The loaf tanks are designed for a variety of applications. Its rectangular shape allows for placement within pickup beds or it may be mounted on various equipment trailers for use as a mobile water supply. This line of tanks may also be used in a variety of stationary storage applications.



      Click here if you need the Auto Detail/Graffiti Removal Tanks.

      To create your setup, look at the various sizes we have below. You can then contact a Distributor or Rep in your area to complete the process of ordering. If image is available, hover over for larger view. If PDF drawing is available – click to download.

      PNTank SizeTank TypeLengthWidthHeightWeightColorModel #PDF
      01-129030 Gallon / 114 LitrePCO25 in / 63.50 cm19 in / 48.26 cm23 in / 58.42 cm17 Lbs / 8 KgWhite41254PDF
      01-2958350 Gallon / 189 LitreLoaf41 in / 104.14 cm27 in / 68.58 cm17 in / 43.18 cm#ErrorWhite43610PDF
      01-129150 Gallon / 189 LitrePCO38 in / 96.52 cm19 in / 48.26 cm22 in / 55.88 cm26 Lbs / 12 KgWhite40664PDF
      01-1485850 Gallon / 189 LitrePCO Ribbed38 in / 96.52 cm19 in / 48.26 cm23 in / 58.42 cm26 Lbs / 12 KgWhite42834
      01-29584100 Gallon / 379 LitreLoaf41 in / 104.14 cm27 in / 68.58 cm30 in / 76.20 cm#ErrorWhite43611PDF
      01-14859100 Gallon / 379 LitrePCO Ribbed38 in / 96.52 cm30 in / 76.2 cm30 in / 76.20 cm41 Lbs / 19 KgWhite42835
      01-1286100 Gallon / 379 LitrePCO38 in / 96.52 cm30 in / 76.2 cm28 in / 71.12 cm41 Lbs / 19 KgWhite40668PDF
      01-14860150 Gallon / 568 LitrePCO Ribbed48 in / 121.92 cm37 in / 93.98 cm29 in / 73.66 cm63 Lbs / 29 KgWhite42836
      01-1287150 Gallon / 568 LitrePCO48 in / 121.92 cm36 in / 91.44 cm28 in / 71.12 cm61 Lbs / 28 KgWhite40669PDF
      01-29585200 Gallon / 757 LitreLoaf48 in / 121.92 cm36 in / 91.44 cm29 in / 73.66 cm#ErrorWhite43612PDF
      01-14861200 Gallon / 757 LitrePCO Ribbed48 in / 121.92 cm37 in / 93.98 cm37 in / 93.98 cm83 Lbs / 38 KgWhite42837
      01-1288200 Gallon / 757 LitrePCO48 in / 121.92 cm36 in / 91.44 cm37 in / 93.98 cm76 Lbs / 34 KgWhite41413PDF
      01-29586300 Gallon / 1136 LitreLoaf63 in / 160.02 cm42 in / 106.68 cm30 in / 76.20 cm#ErrorWhite43613PDF
      01-1289300 Gallon / 1136 LitrePCO69 in / 175.26 cm36 in / 91.44 cm37 in / 93.98 cm143 Lbs / 65 KgWhite41381PDF

      Save

      All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
      Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
      Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
