PROForms® Angle

STD | FR | VE

Coming Soon –> Spec Sheet

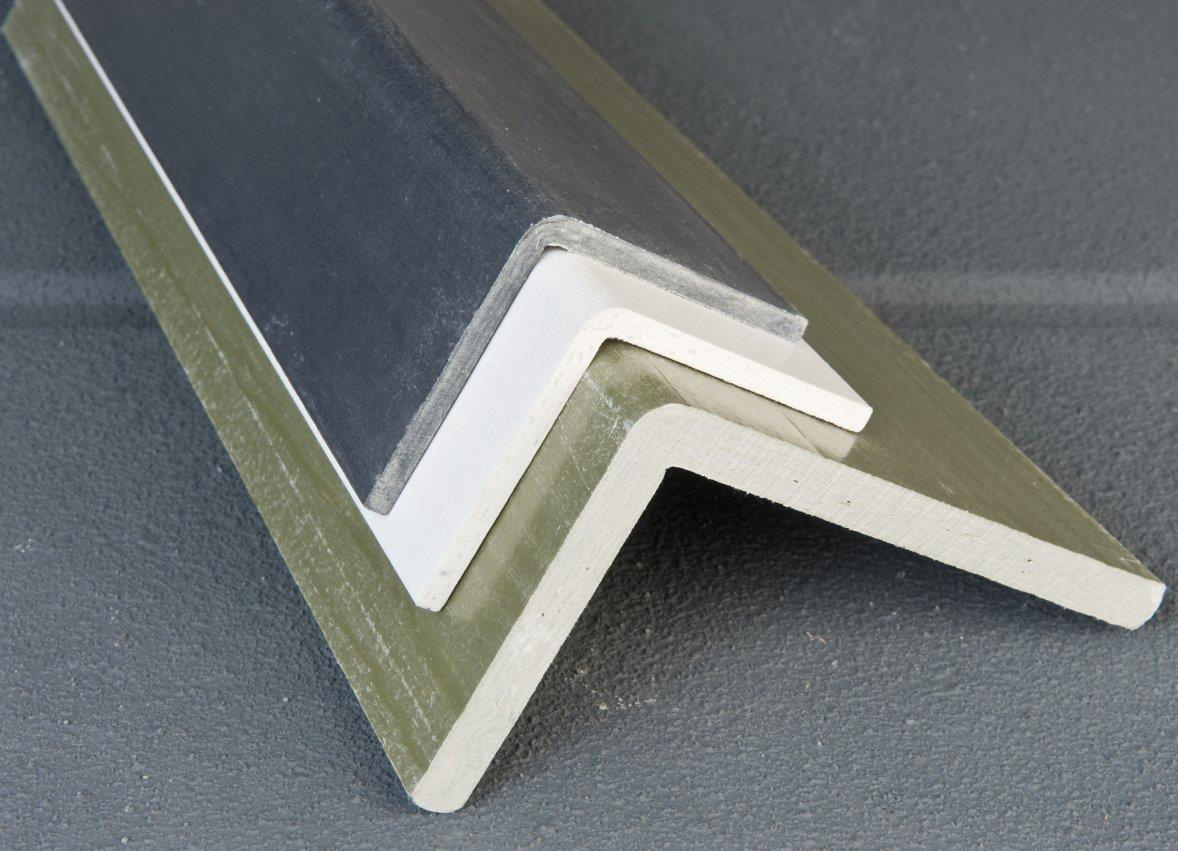

      PROForms® Angle

      PROForms® Angle – Need to replace wood, steel or aluminum with a strong, lightweight, long-lasting option? We stock one of the industry’s most comprehensive lines of FRP profiles.

      Won’t Rot, Rust or Corrode
      Our fiberglass reinforced structural shapes offer the strength of traditional building materials with a longer life cycle.

      Won’t Shrink, Swell, Warp or Bow
      Hot or cold, wet or dry, our FRP structural members remain dimensionally stable.

      Easy, Quick Installation
      Fiberglass structural shapes can be cut, drilled and assembled using standard tools.

      Popular Applications

      • Cross bracing
      • Clip angles
      • Short column fabrication
      • Concrete embedment
      • Display racks
      • Overhead pipe supports
      • Under bridge/pier pipe supports

      GP: A general-purpose orthophthalic polyester resin system that offers good corrosion resistance at an economical price.
      IFR: A premium-grade isophthalic polyester resin system that provides excellent corrosion protection.
      VFR: A vinyl ester resin system that provides the highest level of corrosion protection.

      To create your setup, look at the various sizes we have below. You can then contact a Distributor or Rep in your area to complete the process of ordering.

      ProductDescriptionPNModel #ResinColorStock Length
      Angle1 1/2" X 1/4"40-1863ANG1_1/2X1/4BEI35-401_RSVEBeige20 FT
      Angle1 1/2" X 1/4"39-25746ANG1_1/2X1/4GY22-401FRGray20 FT
      Angle1 1/2" X 1/4"04-25733ANG1_1/2X1/4GN1-400_RSSTDGreen20 FT
      Angle1 1/2" X 3/16"04-1835ANG1_1/2X3/16GN1-400_RSSTDGreen20 FT
      Angle1 1/2" X 3/16"39-25744ANG1_1/2X3/16GY22-401FRGray20 FT
      Angle1'' X 1/8''04-1833ANG1X1/8GN1-400_RSSTDGreen20 FT
      Angle1'' X 1/8''39-25742ANG1X1/8GY22-401_RSFRGray20 FT
      Angle1'' X 1/8''40-1859ANG1X1/8BEI35-401_RSVEBeige20 FT
      Angle2" X 1/4"40-1865ANG2X1/4BEI35-401VEBeige20 FT
      Angle2" X 1/4"04-25735ANG2X1/4GN1-400_RSSTDGreen20 FT
      Angle2" X 1/4"39-25748ANG2X1/4GY22-401FRGray20 FT
      Angle3" X 1/4"04-25736ANG3X1/4GN1-400STDGreen20 FT
      Angle3" X 1/4"40-1866ANG3X1/4BEI35-401VEBeige20 FT
      Angle3" X 1/4"39-25749ANG3X1/4GY22-401FRGray20 FT
      Angle3" X 3/8"40-1867ANG3X3/8BEI35-401VEBeige20 FT
      Angle3" X 3/8"39-25750ANG3X3/8GY22-401FRGray20 FT
      Angle3" X 3/8" NSF04-25737ANG3X3/8GN5-80STDGreen20 FT
      Angle4" X 1/2"39-1857ANG4X1/2GY22-401FRGray20 FT
      Angle4" X 1/2"04-25740ANG4X1/2GN1-400STDGreen20 FT
      Angle4" X 1/2"40-1870ANG4X1/2BEI35-401VEBeige20 FT
      Angle4" X 1/4"40-1868ANG4X1/4BEI35-401VEBeige20 FT
      Angle4" X 1/4"04-25738ANG4X1/4GN1-400_RSSTDGreen20 FT
      Angle4" X 1/4"39-25751ANG4X1/4GY22-401FRGray20 FT
      Angle4" X 3/8"40-1869ANG4X3/8BEI35-401VEBeige20 FT
      Angle4" X 3/8"04-25739ANG4X3/8GN1-400_RSSTDGreen20 FT
      Angle4" X 3/8"39-25752ANG4X3/8GY22-401FRGray20 FT
      Angle6" X 1/2"04-25741ANG6X1/2GN1-400STDGreen20 FT
      Angle6" X 1/2"40-1871ANG6X1/2BEI35-401VEBeige20 FT
      Angle6" X 1/2"39-1858ANG6X1/2GY22-401FRGray20 FT
      All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
      Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
      Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
