Single Wall Tanks

      Single Wall Tanks

      Single Wall Tanks are manufactured from Exxon Escorene 8660 resin, a high purity FDA approved HDLPE (High Density Linear Polyethylene) resin. HDLPE tanks have superior chemical resistance, extreme durability and excellent UV stabilizers, making them an ideal choice for a wide range of applications from food processing and semiconductor to heavy duty industrial chemical storage. Most of our tanks are also NSF 61 compliant.

      HDLPE resins are weldable, allowing for installation of welded process nozzles from 1/2” to 14” and larger if required.
      Our tanks are rated for temperatures up to 125°F and higher with special upgraded enhancements upon request.
      Our standard tanks are rated for 1.5 Specific Gravity contents.

      We offer 1.9 SPG tanks upon request.

      Tank Packages designed with our most popular options making Single Wall Tank Systems simple, feature rich and easy to order.



      Silver VP

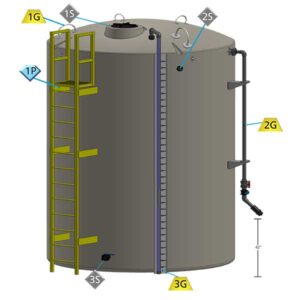

      Key ID #PartSilver Description
      -Plastic Bulkhead FittingsChoice of PVC or PPL. Plastic fittings won’t corrode over time and are very durable
      -CAD DrawingsCAD Submittal Drawings are provided to ensure the tank meets the needs of your application.
      -Shipping PrepIncludes heavy duty shrink wrap to protect your tank from the elements during transit
      1S18” OD LidStandard vented twist lid vents up to 450 gallons per minute during discharge or filling
      2S2” FillFPT fill connection high on tank sidewall
      3S2” Drain with Ball ValveBolted style polypropylene ball valve screws into 2” Drain for secure on/off draining

      Additional Double Wall Features and Adders
      Additional options including seismic restraint systems, heating and insulation, fiberglass wraps, level control, etc. are available at an additional cost.

      To create your setup, look at the various sizes we have below. You can then contact a Distributor or Rep in your area to complete the process of ordering.

      PNNameDiameterHeight
      293-29106850 Gallon Single Wall Value Pak48"118"
      293-291071000 Gallon Single Wall Value Pak64"80"
      293-291081100 Gallon Single Wall Value Pak87"53"
      293-291101550 Gallon Single Wall Value Pak87"67"
      293-291122100 Gallon Single Wall Value Pak87"89"
      293-291132500 Gallon Single Wall Value Pak95"91"
      293-291143000 Gallon Single Wall Value Pak95"109"
      293-291154000 Gallon Single Wall Value Pak102"125"
      293-291165000 Gallon Single Wall Value Pak102"152"
      293-291176000 Gallon Single Wall Value Pak102"182"
      293-291186500 Gallon Single Wall Value Pak119"150"
      293-291197800 Gallon Single Wall Value Pak119"176"
      293-291208400 Gallon Single Wall Value Pak119"188"
      293-291219000 Gallon Single Wall Value Pak141"146"
      293-2912210000 Gallon Single Wall Value Pak141"160"
      293-2912312000 Gallon Single Wall Value Pak141"193"
      293-2912415000 Gallon Single Wall Value Pak141"244"

      Gold VP

      Key ID #PartGold Description
      -Silver FeaturesAll features of Silver Pak are included with the following changes/additions
      -Polyethylene Welded Flanges
      or Couplings*
      All Gold Tank’s fittings are extusion welded and gasketless. Welded fittings provide for industrial grade reliability for all of your tank connections. Made from 100% polyethylene, these fittings are all custom fabricated for optimum performance and chemical resistance
      1GLifting LugsZinc plated lifting lugs allow quick installation of tank by attaching and hoisting tank into position
      2GDrop Fill LineInstalled into Silver 2” Fill (2S), 42” up from the ground level for easy filling of tank. Includes ball valve, check valve, and PPL quick coupler and cap
      3GInverse Level GaugeStandard with fiberglass encapsulated calibration chart in gallons to easily check fluid level from exterior of tank
      *If desired, Stainless Steel Bulkhead fittings can be substituted at no additional cost

      Additional Double Wall Features and Adders
      Additional options including seismic restraint systems, heating and insulation, fiberglass wraps, level control, etc. are available at an additional cost.

      To create your setup, look at the various sizes we have below. You can then contact a Distributor or Rep in your area to complete the process of ordering.

      PNNameDiameterHeight
      293-29128850 Gallon Single Wall Value Pak48"118"
      293-291291000 Gallon Single Wall Value Pak64"80"
      293-291301100 Gallon Single Wall Value Pak87"53"
      293-291321550 Gallon Single Wall Value Pak87"67"
      293-291342100 Gallon Single Wall Value Pak87"89"
      293-291352500 Gallon Single Wall Value Pak95"91"
      293-291363000 Gallon Single Wall Value Pak95"109"
      293-291374000 Gallon Single Wall Value Pak102"125"
      293-291385000 Gallon Single Wall Value Pak102"152"
      293-291396000 Gallon Single Wall Value Pak102"182"
      293-291406500 Gallon Single Wall Value Pak119"150"
      293-291417800 Gallon Single Wall Value Pak119"176"
      293-291428400 Gallon Single Wall Value Pak119"188"
      293-291439000 Gallon Single Wall Value Pak141"146"
      293-2914410000 Gallon Single Wall Value Pak141"160"
      293-2914512000 Gallon Single Wall Value Pak141"193"
      293-2914615000 Gallon Single Wall Value Pak141"244"

      Platinum VP

      Key ID #PartPlatinum Description
      -Silver and Gold FeaturesPlatinum Pak includes all features of Silver and Gold Pak plus those seen and listed below (FRP Ladder)
      1PFRP LadderFRP Ladders are OSHA compliant, corrosion resistant and attaches directly to tank for easy top access. All ladder systems come with required hardware included.

      Additional Double Wall Features and Adders
      Additional options including seismic restraint systems, heating and insulation, fiberglass wraps, level control, etc. are available at an additional cost.

      To create your setup, look at the various sizes we have below. You can then contact a Distributor or Rep in your area to complete the process of ordering.

      PNNameDiameterHeight
      293-29150850 Gallon Single Wall Value Pak48"118"
      293-291511000 Gallon Single Wall Value Pak64"80"
      293-291521100 Gallon Single Wall Value Pak87"53"
      293-291541550 Gallon Single Wall Value Pak87"67"
      293-291562100 Gallon Single Wall Value Pak87"89"
      293-291572500 Gallon Single Wall Value Pak95"91"
      293-291583000 Gallon Single Wall Value Pak95"109"
      293-291594000 Gallon Single Wall Value Pak102"125"
      293-291605000 Gallon Single Wall Value Pak102"152"
      293-291616000 Gallon Single Wall Value Pak102"182"
      293-291626500 Gallon Single Wall Value Pak119"150"
      293-291637800 Gallon Single Wall Value Pak119"176"
      293-291648400 Gallon Single Wall Value Pak119"188"
      293-291659000 Gallon Single Wall Value Pak141"146"
      293-2916610000 Gallon Single Wall Value Pak141"160"
      293-2916712000 Gallon Single Wall Value Pak141"193"
      293-2916815000 Gallon Single Wall Value Pak141"244"
      All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
      Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
      Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
