Value-Pak ProChem® Large Tanks
Looking for Value-Paks on our ProChem® Process Chemical Large Tanks?! We just made it easier for you to order ProChem® Process Tanks loaded with standard features.
Just like our larger tank packages, you can order a Silver Pak to add a just few standard fittings and accessories, Gold if you want a couple extra benefits, or a Platinum Pak for a very “feature rich” tank package.
Go here if you are looking for Value-Paks for ProChem® Small Tanks.
Go Here is you are looking for Value-Paks for Gemini Cylindrical Large Tanks.

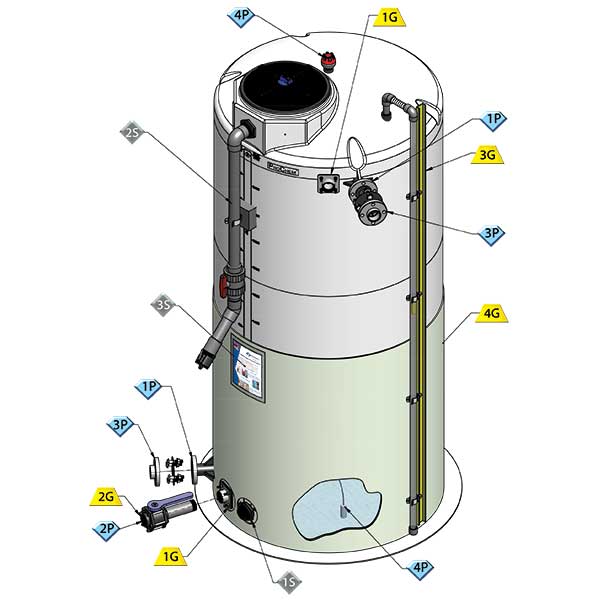

Value-Pak Features
| VP Features | Key ID# | Part | Descriptions |
|---|---|---|---|
| 1 Silver | - | Plastic Fittings | Tank with std. vented lid and top FPT connections. |
| 1 Silver | - | CAD Drawings | CAD Submittal Drawings are provided to ensure the tank meets the needs of your application |
| 1 Silver | - | Shipping Prep | Includes plastic wrap and palletizing to protect your tank from the elements during transit |
| 1 Silver | 1S | 2” Bulkhead Fitting, PP | 2” PP/EPDM bulkhead style low sidewall drain outlet installed |
| 1 Silver | 2S | 2” Fill Inlet with Quick Coupler | 2” QCA fill connection – includes male cam adapter and dust cap with lanyard |
| 1 Silver | 3S | 3P Document Protector | 3P Document Protector to attach important documents on the side of your tank, like safety info, SDS, etc. |
| 2 Gold | - | Silver Features | Includes Following Silver Features: 2S, 3S |
| 2 Gold | 1G | 2” SS/EPDM bolted style tank adaptor | 2” SS 316 Double Threaded Bolted Fitting with EPDM Gasket for Fill Line and Drain |
| 2 Gold | 2G | 2” Bolted Ball Valve | 2” Bolted Ball Valve - Full Port - TxT - PPL |
| 2 Gold | 3G | Mini-Inverse Level | Mini-inverse Level Indication with 2” wide calibration board |
| 2 Gold | 4G | Non-Code FiberRing | Non-Code FiberRing restraint system |
| 3 Platinum | - | Silver and Gold Features | Platinum Pak includes Silver Features: 2S, 3S, and Gold Features 3G and 4G |
| 3 Platinum | 1P | 2” Welded Flange with Ring | 2” Welded Flange Drain Outlet with PP Ball Valve and Fill Line |
| 3 Platinum | 2P | 2” Bolted Ball Valve | 2” Bolted Ball Valve - Full Port - FLG x MPT |
| 3 Platinum | 3P | 2” Companion Flange Kit | 2” Companion Flange, Gasket & Bolt Kit, EPDM Low Torque Gasket |
| 3 Platinum | 4P | Submersible Level Sensor | Submersible Level Sensor with Junction Box and 4-20 mA output |
Value-Pak Silver | Gold | Platinum
| VP Type | Value-Pak Tank Size | PN | Lid Size | Diameter | Height |
|---|---|---|---|---|---|
| 1 Silver | 300 Gal | 293-34515 | 8" | 34" | 85" |
| 1 Silver | 300 Gal | 293-34516 | 16" | 48" | 51.5" |
| 1 Silver | 525 Gal | 293-34517 | 16" | 48" | 82" |
| 1 Silver | 550 Gal | 293-34518 | 16" | 73" | 45" |
| 1 Silver | 750 Gal | 293-34519 | 16" | 48" | 112" |
| 1 Silver | 1000 Gal | 293-34520 | 16" | 73" | 68" |
| 1 Silver | 1500 Gal | 293-34521 | 16" | 73" | 96" |
| 2 Gold | 300 Gal | 293-34522 | 8" | 34" | 85" |
| 2 Gold | 300 Gal | 293-34523 | 16" | 48" | 51.5" |
| 2 Gold | 525 Gal | 293-34524 | 16" | 48" | 82" |
| 2 Gold | 550 Gal | 293-34525 | 16" | 73" | 45" |
| 2 Gold | 750 Gal | 293-34526 | 16" | 48" | 112" |
| 2 Gold | 1000 Gal | 293-34527 | 16" | 73" | 68" |
| 2 Gold | 1500 Gal | 293-34528 | 16" | 73" | 96" |
| 3 Platinum | 300 Gal | 293-34529 | 8" | 34" | 85" |
| 3 Platinum | 300 Gal | 293-34530 | 16" | 48" | 51.5" |
| 3 Platinum | 525 Gal | 293-34531 | 16" | 48" | 82" |
| 3 Platinum | 550 Gal | 293-34532 | 16" | 73" | 45" |
| 3 Platinum | 750 Gal | 293-34533 | 16" | 48" | 112" |
| 3 Platinum | 1000 Gal | 293-34534 | 16" | 73" | 68" |
| 3 Platinum | 1500 Gal | 293-34535 | 16" | 73" | 96" |
