Value-Pak ProChem® Small Tanks
Looking for Value-Paks on our ProChem® Process Chemical Small Tanks?! We just made it easier for you to order ProChem® Process Tanks loaded with standard features.
Just like our larger tank packages, you can order a Silver Pak to add a just few standard fittings and accessories, Gold if you want a couple extra benefits, or a Platinum Pak for a very “feature rich” tank package.
Go here if you are looking for Value-Paks for ProChem® Large Tanks.
Go here if you are looking for Value-Paks for Gemini Cylindrical Small Tanks.

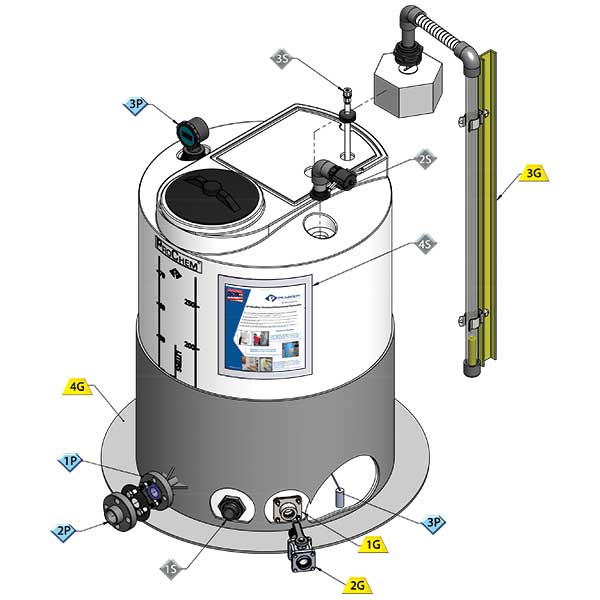

Value-Pak Features
| VP Features | Key ID# | Part | Descriptions |
|---|---|---|---|
| 1 Silver | - | Plastic Fittings | Tank with std. vented lid and top FPT connections. |
| 1 Silver | - | CAD Drawings | CAD Submittal Drawings are provided to ensure the tank meets the needs of your application |
| 1 Silver | - | Shipping Prep | Includes plastic wrap and palletizing to protect your tank from the elements during transit |
| 1 Silver | 1S | 1” Bulkhead Fitting, PP | 1” PP/EPDM low sidewall drain outlet installed |
| 1 Silver | 2S | 1” QCA Top Fill Assembly | 1” QCA fill connection with 90 degree elbow – includes male cam adapter and dust cap with lanyard |
| 1 Silver | 3S | Gemini Pump Suction Tube with Foot Valve | Gemini Pump Suction Tube with foot valve to make your chemical feed suction connection very easy |
| 1 Silver | 4S | 3P Document Protector | 3P Document Protector to attach important documents on the side of your tank, like safety info, SDS, etc. |
| 2 Gold | - | Silver Features | Includes Following Silver Features: 2S, 3S, 4S |
| 2 Gold | 1G | 1” SS/EPDM bolted style tank adaptor | SS 1” 316 Double Threaded Bolted Fitting with EPDM Gasket |
| 2 Gold | 2G | 1” Bolted Ball Valve | 1” Bolted Ball Valve - Full Port - TxT - PPL |
| 2 Gold | 3G | Mini Inverse Level Indicator | Mini-inverse Level Indication with 2” wide calibration board |
| 2 Gold | 4G | Non-Code FiberRing | Non-Code FiberRing restraint system |
| 3 Platinum | - | Silver and Gold Features | Platinum Pak includes Silver Features: 2S, 3S, 4S, and Gold Features 2G, 3G and 4G |
| 3 Platinum | 1P | 1” Welded Flange Outlet | 1” Welded Flange Outlet |
| 3 Platinum | 2P | 1” Companion Flange Kit | 1” Companion Flange, Gasket & Bolt Kit, EPDM Low Torque Gasket |
| 3 Platinum | 3P | Submersible Level Sensor | Submersible Level Sensor + display and 4-20 mA signal output, 24 VDC powered |
Value-Pak Silver | Gold | Platinum
| VP Type | Value-Pak Tank Size | PN | Lid Size | Diameter | Height |
|---|---|---|---|---|---|
| 1 Silver | 25 Gal | 293-34491 | 8" | 19.5" | 26.25" |
| 1 Silver | 50 Gal | 293-34492 | 8" | 19.5" | 47.25" |
| 1 Silver | 65 Gal | 293-34493 | 8" | 23" | 43" |
| 1 Silver | 75 Gal | 293-34494 | 8" | 27" | 40" |
| 1 Silver | 100 Gal | 293-34495 | 8" | 27" | 47.75" |
| 1 Silver | 125 Gal | 293-34496 | 8" | 27" | 59.25" |
| 1 Silver | 175 Gal | 293-34497 | 8" | 34" | 55" |
| 1 Silver | 200 Gal | 293-34498 | 8" | 34" | 61" |
| 2 Gold | 25 Gal | 293-34499 | 8" | 19.5" | 26.25" |
| 2 Gold | 50 Gal | 293-34500 | 8" | 19.5" | 47.25" |
| 2 Gold | 65 Gal | 293-34501 | 8" | 23" | 43" |
| 2 Gold | 75 Gal | 293-34502 | 8" | 27" | 40" |
| 2 Gold | 100 Gal | 293-34503 | 8" | 27" | 47.75" |
| 2 Gold | 125 Gal | 293-34504 | 8" | 27" | 59.25" |
| 2 Gold | 175 Gal | 293-34505 | 8" | 34" | 55" |
| 2 Gold | 200 Gal | 293-34506 | 8" | 34" | 61" |
| 3 Platinum | 25 Gal | 293-34507 | 8" | 19.5" | 26.25" |
| 3 Platinum | 50 Gal | 293-34508 | 8" | 19.5" | 47.25" |
| 3 Platinum | 65 Gal | 293-34509 | 8" | 23" | 43" |
| 3 Platinum | 75 Gal | 293-34510 | 8" | 27" | 40" |
| 3 Platinum | 100 Gal | 293-34511 | 8" | 27" | 47.75" |
| 3 Platinum | 125 Gal | 293-34512 | 8" | 27" | 59.25" |
| 3 Platinum | 175 Gal | 293-34513 | 8" | 34" | 55" |
| 3 Platinum | 200 Gal | 293-34514 | 8" | 34" | 61" |
All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
