Welded Couplings

HD Polyethylene | Polypropylene

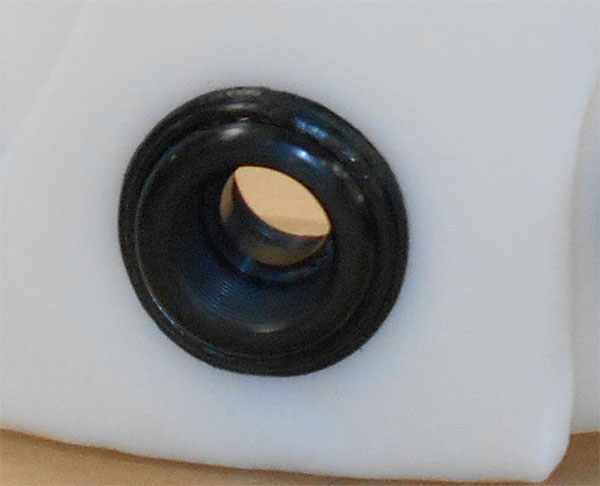

      Welded Couplings – Polyethylene

      Welded Couplings are made from 100% virgin, UV-resistant black polyethylene, our threaded couplings are the best choice for your demanding applications. Since they are welded into your tank, no gaskets are necessary, making them virtually maintenance free. Available in Full (Thd) or Half (Thd) Coupling configuration.

      Couplings below are included on the installation in Single Wall Tanks. If you would like them installed on a Double Wall tank you will need to contact customer service for pricing.  For loose part (part without installation) please call.

      Coupling SizeTypePE Black Thd PNPPL Natural Thd PNWeight
      .5 in / 1.27 cmHalf Coupling02-1506602-273021 Lbs / 1 Kg
      .5 in / 1.27 cmFull Coupling02-1507402-273101 Lbs / 1 Kg
      .75 in / 1.905 cmHalf Coupling02-1506702-273031 Lbs / 1 Kg
      .75 in / 1.905 cmFull Coupling02-1507502-273111 Lbs / 1 Kg
      1 in / 2.54 cmHalf Coupling02-1506802-273041 Lbs / 1 Kg
      1 in / 2.54 cmFull Coupling02-1507602-273121 Lbs / 1 Kg
      1.25 in / 3.175 cmHalf Coupling02-1506902-273051 Lbs / 1 Kg
      1.25 in / 3.175 cmFull Coupling02-1507702-273131 Lbs / 1 Kg
      1.5 in / 3.81 cmHalf Coupling02-1507002-273061 Lbs / 1 Kg
      1.5 in / 3.81 cmFull Coupling02-1507802-273141 Lbs / 1 Kg
      2 in / 5.08 cmHalf Coupling02-1507102-273071 Lbs / 1 Kg
      2 in / 5.08 cmFull Coupling02-1507902-273151 Lbs / 1 Kg
      3 in / 7.62 cmHalf Coupling02-1507202-273082 Lbs / 1 Kg
      3 in / 7.62 cmFull Coupling02-1508002-273162 Lbs / 1 Kg
      4 in / 10.16 cmHalf Coupling02-1507302-273093 Lbs / 1 Kg
      4 in / 10.16 cmFull Coupling02-1508102-273173 Lbs / 1 Kg
      All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
      Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
      Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
