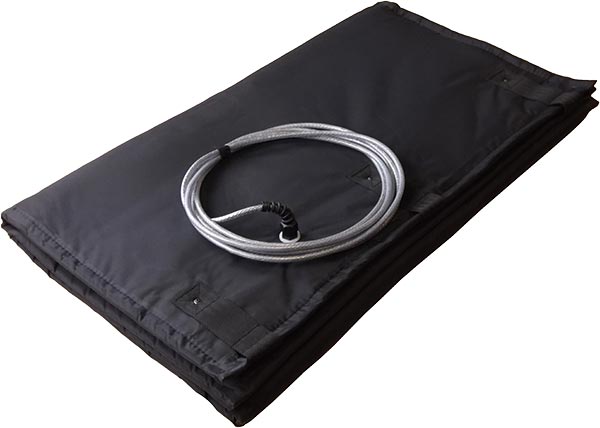

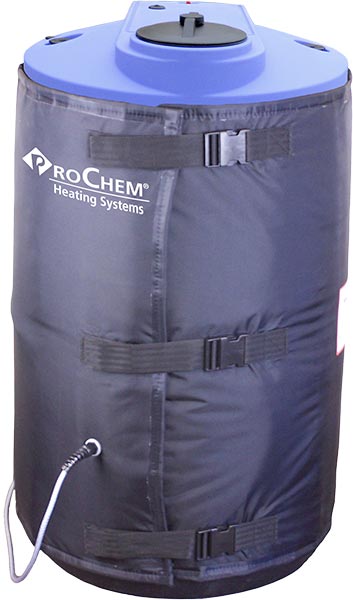

      ProChem® Flexible Heating Blanket Systems for Gemini® and ProChem® Tanks

      Some chemicals, like caustics, are very sensitive to temperatures below 60 degrees F. Storage and process tanks that are located in cold environments like unheated warehouses and outdoor installations may need “freeze protection” systems as well. If your tank needs to be heated, consider the New ProChem® Flexible Heating Blanket Systems. ProChem® Flexible Heating Blanket Systems provide a very simple and cost effective method to add a heating system to any of our tanks.

      Click on the tabs above to see Jacket specifications.

      We have (9) different standard models, to fit our tanks:



      Jacket A

      Jacket A – Standard    PN 02-32277

      Factory Freight Adder (NET add-on to final price)
      Adjustable Size: 37.5”-57”, 10.5” height
      Power: 200W, 110V Single Circuit

      For use with the following TanksTank Size
      Open Top5 Gallon
      Closed Top5 Gallon
      Open Top10 Gallon
      Closed Top10 Gallon
      Open Top Nestable10 Gallon
      Open Top15 Gallon
      Closed Top15 Gallon
      Open Top30 Gallon
      Closed Top30 Gallon
      Gemini² Dual Containtment®5 Gallon
      Gemini² Dual Containtment®10 Gallon

      Jacket B

      Jacket B – Standard    PN 02-32278

      Factory Freight Adder (NET add-on to final price)
      Adjustable Size: 59”-79”, 20” height
      Power: 550W, 110V Single Circuit

      For use with the following TanksTank Size
      Gemini Dual Containtment®15 Gallon
      Gemini Dual Containtment®20 Gallon
      Gemini Dual Containtment® Flat40 Gallon
      Gemini Dual Containtment® Dome40 Gallon
      Open Top55 Gallon
      Closed Top55 Gallon
      Gemini² Dual Containtment®20 Gallon
      ProChem®25 Gallon
      ProChem®50 Gallon

      Jacket C

      Jacket C – Standard    PN 02-32279

      Factory Freight Adder (NET add-on to final price)
      Adjustable Size: 80”-98.5”, 27.5” height
      Power: 1000W, 110V Single Circuit

      For use with the following TanksTank Size
      Gemini Dual Containtment® Flat62 Gallon
      Gemini Dual Containtment®65 Gallon
      Open Top100 Gallon
      Closed Top100 Gallon
      Open Top150 Gallon
      Closed Top150 Gallon
      ProChem®75 Gallon
      ProChem®100 Gallon
      ProChem®125 Gallon
      Gemini² Dual Containtment®40 Gallon
      Gemini² Dual Containtment®70 Gallon

      Jacket D

      Jacket D – Standard    PN 02-32280

      Factory Freight Adder (NET add-on to final price)
      Adjustable Size: 106”-126”, 37.5” height
      Power: 1350W, 110V Single Circuit

      Jacket D – High Power Dual Circuit    PN 02-32281

      Factory Freight Adder (NET add-on to final price)
      Adjustable Size: 106”-126”, 37.5” height
      Power: 1700W, 110V Dual Circuit

      For use with the following TanksTank Size
      Gemini Dual Containtment®90 Gallon
      Gemini Dual Containtment®120 Gallon
      Gemini Dual Containtment®160 Gallon
      Open Top200 Gallon
      Closed Top200 Gallon
      ProChem®175 Gallon
      ProChem®200 Gallon
      Gemini² Dual Containtment®120 Gallon

      Jacket E

      Jacket E – Standard PN 02-32282

      Factory Freight Adder (NET add-on to final price)
      Adjustable Size: 150”-169”, 37.5” height
      Power: 1350W, 110V Single Circuit

      Jacket E – High Power Dual Circuit PN 02-32283

      Factory Freight Adder (NET add-on to final price)
      Adjustable Size: 150”-169”, 37.5” height
      Power: 2200W, 110V Dual Circuit

      For use with the following TanksTank Size
      Gemini Dual Containtment®220 Gallon
      Gemini Dual Containtment®320 Gallon
      Open Top300 Gallon
      Closed Top300 Gallon
      Open Top400 Gallon
      Closed Top400 Gallon
      Open Top500 Gallon
      Closed Top500 Gallon
      ProChem®300 Gallon

      Jacket F

      Jacket F – Standard PN 02-32284

      Factory Freight Adder (NET add-on to final price)
      Adjustable Size: 165”-193”, 37.5” height
      Power: 1350W, 110V Single Circuit

      Jacket F – High Power Dual Circuit PN 02-32285

      Factory Freight Adder (NET add-on to final price)
      Adjustable Size: 165”-193”, 37.5” height
      Power: 2700W, 110V Dual Circuit

      For use with the following TanksTank Size
      Gemini Dual Containtment®500 Gallon

      Additional Options

      Weather Jackets

      For outdoor usage.

      Weather CoversPN
      Jacket A02-32286
      Jacket B02-32287
      Jacket C02-32288
      Jacket D02-32289
      Jacket E02-32290
      Jacket F02-32291

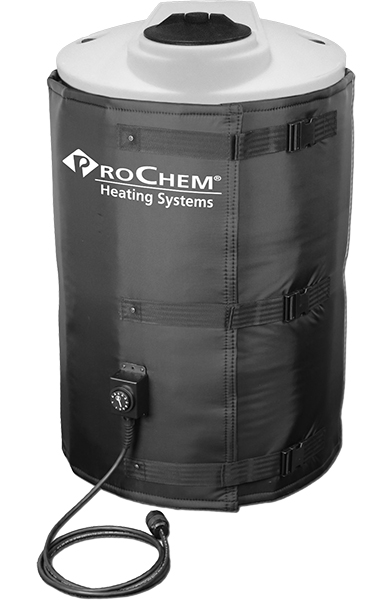

      Controllers

      These are options for more accurate temperature control. High power units have “Dual Circuits” and therefore could require (2) controllers if you choose to add them.

      ControllersPN
      Single Control02-32357
      Dual Controls02-32358
      All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
      Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
      Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
