Stands for ProChem® Cone Bottom Tanks
ProChem® Cone Bottom Tank Stands are made standard with Mild Steel Construction (other materials available upon request) and are available in standard and seismic-rated designs. They are designed to fit our ProChem® Cone Bottom Tanks with 30° slope. Contact customer service for application assistance.

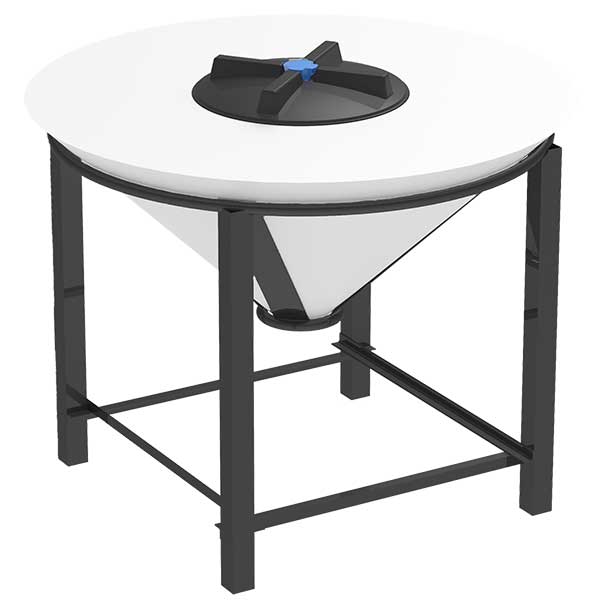

ProChem® Cone Bottom Tank 45 Gallon with Stand

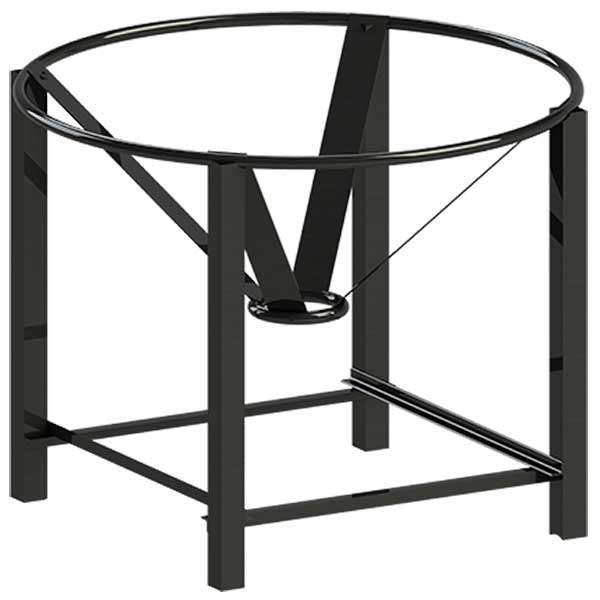

Stand for 45 Gallon ProChem® Cone Bottom Tank

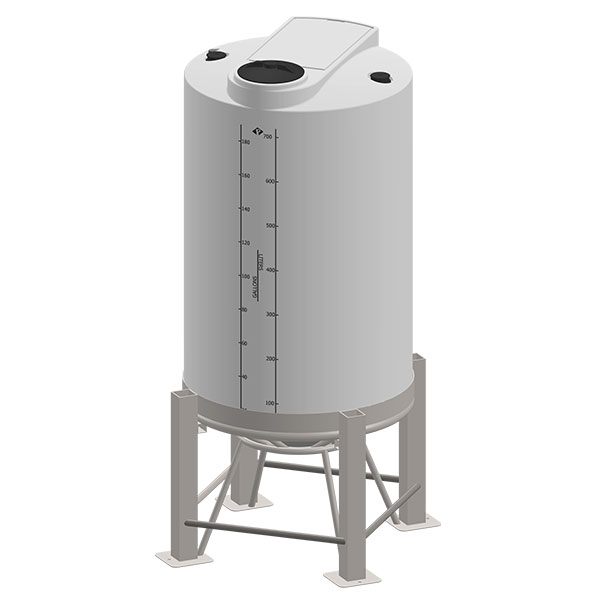

ProChem® Cone Bottom Tank 200 Gallon with Stand

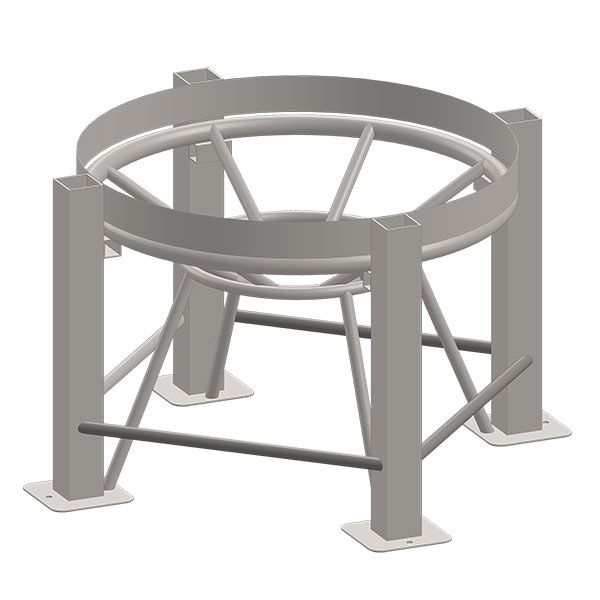

Stand for 200 Gallon ProChem® Cone Bottom Tank

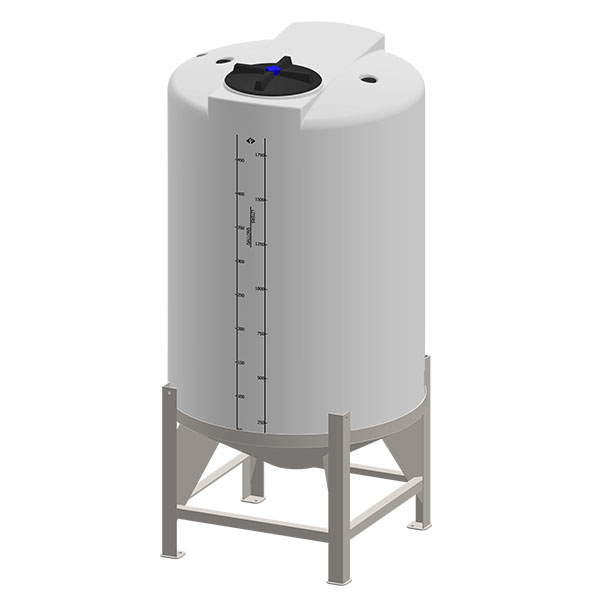

ProChem® Cone Bottom Tank 500 Gallon with Stand

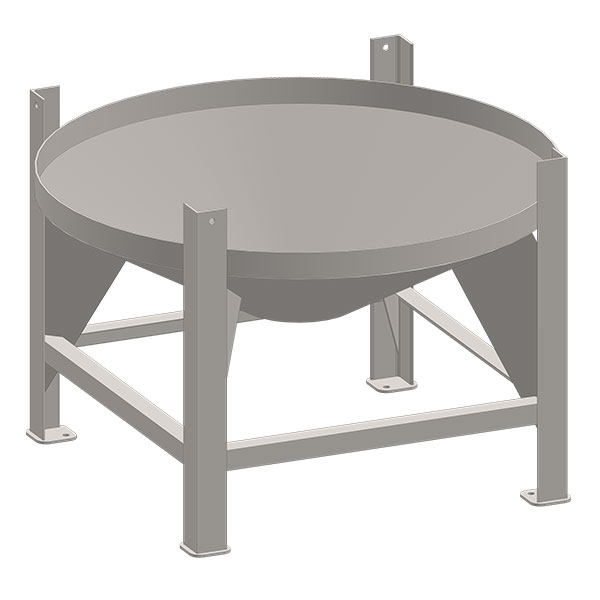

Stand for 500 Gallon ProChem® Cone Bottom Tank
Go here to see ProChem Cone Bottom Tanks -->
To create your setup, look at the various sizes we have below. You can then contact a Distributor or Rep in your area to complete the process of ordering.
Steel Stands for Cone Bottom Tanks – 30° & 45° Slope
| Stand Type | Fits Tank Size | Dia x Ht | Ground Clearance Under Cone | Stainless Steel w/o Mixer Support PN | Stainless Steel with Mixer Support PN |
|---|---|---|---|---|---|
| Non-Seismic Mild Steel | 45 Gal | 42" x 33" | 12" | 02-34554 | 02-34555 |
| Non-Seismic Mild Steel | 75 & 100 Gal | 25.25” x 14.5” | 12" | 02-36470 | 02-36471 |
| Non-Seismic Mild Steel | 200 Gal | 45" x 26" | 12" | 02-33867 | 02-33914 |
| Non-Seismic Mild Steel | 500 Gal | 49" x 34" | 12" | 02-33867 | 02-33915 |
| Seismic Rated Mild Steel | 45 Gal | 42" x 33" | 12" | 02-36480 | 02-36483 |
| Seismic Rated Mild Steel | 75 & 100 Gal | 25.25” x 14.5” | 12" | 02-36472 | 02-36473 |
| Seismic Rated Mild Steel | 200 Gal | 45" x 26" | 12" | 02-36481 | 02-36484 |
| Seismic Rated Mild Steel | 500 Gal | 49" x 34" | 12" | 02-36482 | 02-36485 |
Steel Stands for Cone Bottom Tanks – 60° Slope
| Stand Type | Fits Tank Size | Painted Mild Steel PN | Stainless Steel PN | |
|---|---|---|---|---|
| Without Agitator Bracket | 19 Gal | 02-27291 | 02-31044 | |
| Without Agitator Bracket | 25 Gal | 02-27292 | 02-31045 | |
| Without Agitator Bracket | 40 Gal | 02-27294 | 02-31046 | |
| Without Agitator Bracket | 40 Gal Tall | 02-27293 | 02-31047 | |
| Without Agitator Bracket | 98 Gal | 02-27296 | 02-31048 | |
| Without Agitator Bracket | 101 Gal | 02-27295 | 02-31049 | |
| With Agitator Bracket | 19 Gal | 02-31050 | 02-31056 | |
| With Agitator Bracket | 25 Gal | 02-31051 | 02-31057 | |
| With Agitator Bracket | 40 Gal | 02-31052 | 02-31058 | |
| With Agitator Bracket | 40 Gal Tall | 02-31053 | 02-31059 | |
| With Agitator Bracket | 98 Gal | 02-31054 | 02-31060 | |
| With Agitator Bracket | 101 Gal | 02-31055 | 02-31061 |
All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
