LPE 1.0 Specific Gravity – Water Only
ProChem® Potable Water Tanks

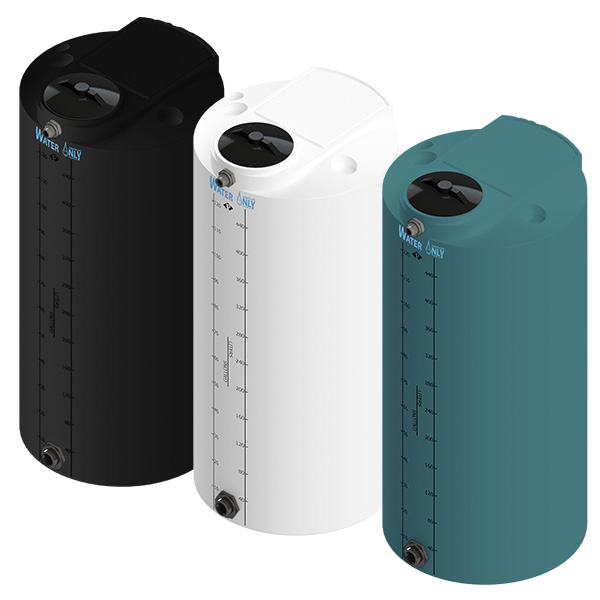

ProChem® Potable Water Tanks with Bulkhead Fittings – the perfect solution for your potable water, hydroponics and agricultural storage needs. Made from durable polyethylene material, these tanks are available in natural, green or black colors. All of Peabody’s ProChem® storage tanks are certified NSF/ANSI/CAN 61 for purity and for the safe storage of drinking water and UV rated for up to 20 years in direct sunlight.
Sizes from 25 to 1500 gallons are equipped with a threaded plastic access opening secured to your tank with a lanyard and are vented to atmosphere, they also come with either 1 or 2 Bulkhead Fittings depending on size of tanks ordered.
Looking for additional valves fittings, pipe nipples, and couplers to complete your tank needs? Look no further! Our comprehensive selection of high-quality accessories are available (at an additional cost). With these options, you can customize your tank to fit your specific requirements and ensure optimal performance. Download our Spec Sheet (see above) and explore all the available options. Whether you need a simple valve or a complex fitting system, we’ve got you covered!
Go here if you are looking for our ProChem® Process Chemical Tanks.
Go here if you would like a Tank Quote.To create your setup, look at the various sizes we have below. You can then contact a Distributor or Rep in your area to complete the process of ordering. If image is available, hover over for larger view. If PDF drawing is available – click to download.
ProChem® Potable Water Tanks with Bulkhead Fittings
| Tank Size | Image | Lid Size | Dia | Hgt | Fitting Size T=Top / B=Bottom | Black 1.0 | Natural 1.0 | Green 1.0 |
|---|---|---|---|---|---|---|---|---|
| 0025 Gal |  | 8 in | 19.5 in | 26.25 in | B 3/4 in | 01-31864BH | 01-34024BH | 01-34926BH |
| 0040 Gal |  | 8 in | 18 in | 42 in | B 3/4 in | 01-34827BH | 01-34826BH | 01-34927BH |
| 0050 Gal |  | 8 in | 19.5 in | 47.25 in | B 3/4 in | 01-31865BH | 01-34025BH | 01-34928BH |
| 0065 Gal |  | 8 in | 23 in | 43 in | B 3/4 in | 01-32895BH | 01-34026BH | 01-34929BH |
| 0075 Gal |  | 8 in | 27 in | 40 in | B 3/4 in | 01-31866BH | 01-34027BH | 01-34930BH |
| 0100 Gal |  | 8 in | 27 in | 47.75 in | T 3/4 in / B 1.5 in | 01-31867BH | 01-34028BH | 01-34931BH |
| 0125 Gal |  | 8 in | 27 in | 59.25 in | T 3/4 in / B 1.5 in | 01-31868BH | 01-34029BH | 01-34932BH |
| 0175 Gal |  | 8 in | 34 in | 55 in | T 3/4 in / B 1.5 in | 01-31870BH | 01-34030BH | 01-34933BH |
| 0200 Gal |  | 8 in | 34 in | 61 in | T 1.5 in / B 2 in | 01-31871BH | 01-34031BH | 01-34934BH |
| 0265 Gal |  | 8 in | 31 in | 90.625 in | T 1.5 in / B 2 in | 01-34802BH | 01-34801BH | 01-34935BH |
| 0300 Gal |  | 8 in | 34 in | 85 in | T 1.5 in / B 2 in | 01-33835BH | 01-34032BH | 01-34936BH |
| 0300 Gal |  | 16 in | 48 in | 51.5 in | T 1.5 in / B 2" | 01-31873BH | 01-34033BH | 01-34937BH |
| 0525 Gal |  | 16 in | 48 in | 82 in | T 1.5 in / B 2" | 01-31874BH | 01-34034BH | 01-34938BH |
| 0550 Gal |  | 16 in | 73 in | 45 in | T 1.5 in / B 2" | 01-33432BH | 01-34035BH | 01-34939BH |
| 0750 Gal |  | 16 in | 48 in | 112 in | T 1.5 in / B 2" | 01-33010BH | 01-34036BH | 01-34940BH |
| 1000 Gal |  | 16 in | 64" | 82" | T 1.5 in / B 2" | 01-35279BH | 01-35278BH | 01-35280BH |
| 1000 Gal |  | 16 in | 73" | 68 in | T 1.5 in / B 2" | 01-33049BH | 01-34037BH | 01-34941BH |
| 1500 Gal |  | 16 in | 64" | 118" | T 1.5 in / B 2" | 01-35282BH | 01-35281BH | 01-35283BH |
| 1500 Gal |  | 16 in | 73 in | 96 in | T 1.5 in / B 2" | 01-33053BH | 01-34038BH | 01-34942BH |
ProChem® Potable Water Tanks with Spinweld Fittings
These Potable Tanks are equipped with a threaded plastic access opening secured to your tank with a lanyard and have Spinweld Fittings on top of tank. These Potable Tanks DO NOT come with Bulkhead Fittings.
| Tank Size | Image for Black Tanks | Lid Size | Diameter | Height | Black PN | Natural PN | |
|---|---|---|---|---|---|---|---|
| 0025 Gal |  | 8 in | 19.5 in | 026.25 in | 01-31864 | 01-34024 | |
| 0040 Gal |  | 8 in | 18 in | 042 in | 01-34827 | 01-34826 | |
| 0050 Gal |  | 8 in | 19.5 in | 047.25 in | 01-31865 | 01-34025 | |
| 0065 Gal |  | 8 in | 23 in | 043 in | 01-32895 | 01-34026 | |
| 0075 Gal |  | 8 in | 27 in | 040 in | 01-31866 | 01-34027 | |
| 0100 Gal |  | 8 in | 27 in | 047.75 in | 01-31867 | 01-34028 | |
| 0125 Gal |  | 8 in | 27 in | 059.25 in | 01-31868 | 01-34029 | |
| 0175 Gal |  | 8 in | 34 in | 055 in | 01-31870 | 01-34030 | |
| 0200 Gal |  | 8 in | 34 in | 061 in | 01-31871 | 01-34031 | |
| 0265 Gal |  | 8 in | 31 in | 090.625 in | 01-34802 | 01-34801 | |
| 0300 Gal |  | 8 in | 34 in | 085 in | 01-33835 | 01-34032 | |
| 0300 Gal |  | 16 in | 48 in | 051.5 in | 01-31873 | 01-34033 | |
| 0525 Gal |  | 16 in | 48 in | 082 in | 01-31874 | 01-34034 | |
| 0550 Gal |  | 16 in | 73 in | 045 in | 01-33432 | 01-34035 | |
| 0750 Gal |  | 16 in | 48 in | 112 in | 01-33010 | 01-34036 | |
| 1000 Gal |  | 16 in | 74 in | 068 in | 01-33049 | 01-34037 | |
| 1500 Gal |  | 16 in | 74 in | 096 in | 01-33053 | 01-34038 |
