Horizontal Saddle Tanks

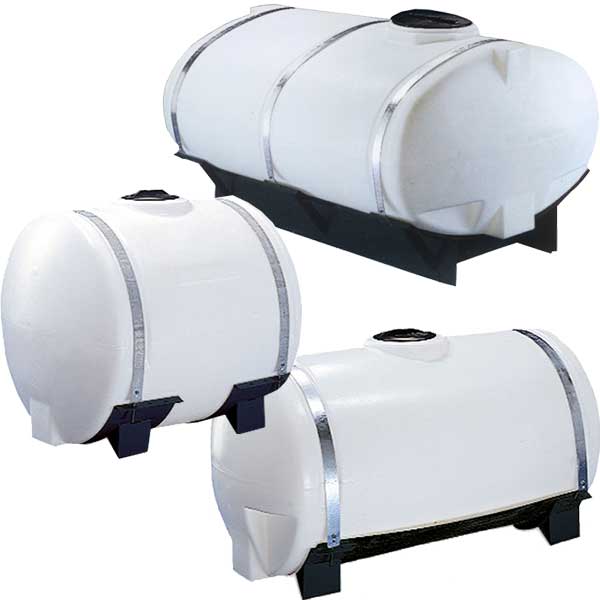

Our Horizontal Saddle Tanks consists of Applicator Plastic Tanks and Elliptical Plastic Tanks.
Applicator Tanks

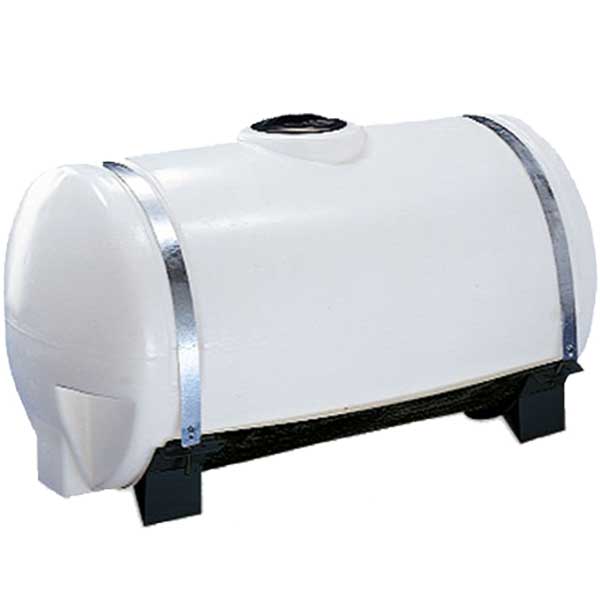

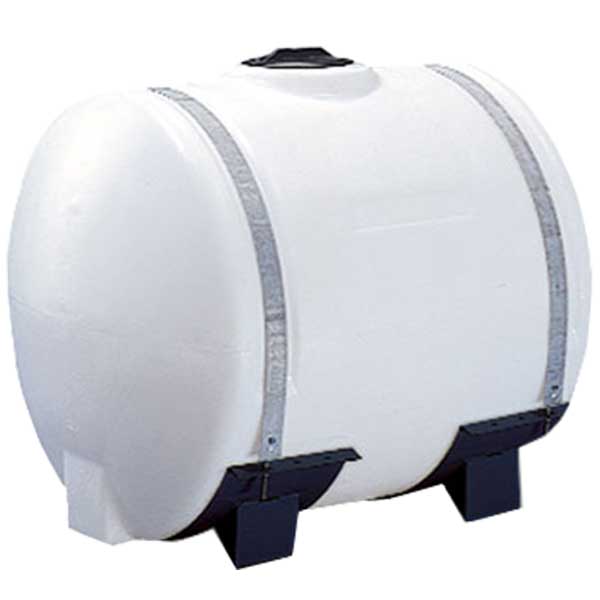

This cylindrical applicator tank features a lid which threads directly into the fill-opening of the tank to prevent the sloshing or leaking of tank contents during transport or application.
Elliptical Tanks

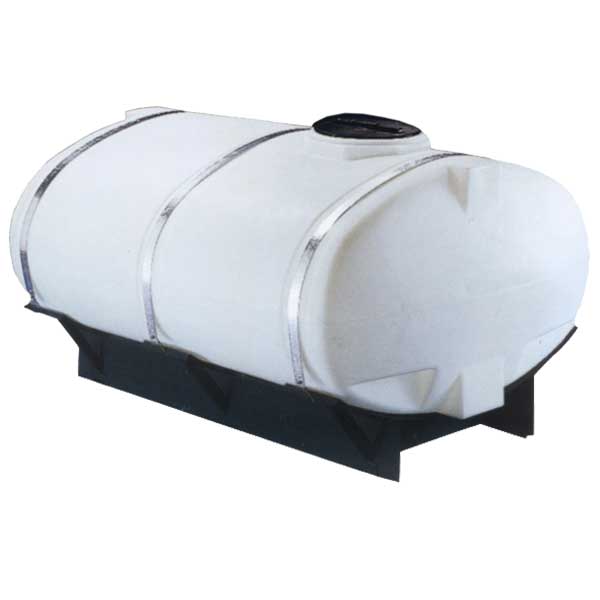

Designed for larger volume applicator needs; it features a low profile design and a low center of gravity for excellent visibility in the field and increased stability when towed. A deep sump permits complete drainage and the tank features an 8″ or 16″ fill-opening. The plastic tank is standard weight at 1.5 specific gravity.
For Elliptical Tank and Skids check them out in their sections.
Go here if you require Elliptical Leg Tanks
Note: Standard fittings are available on some models. Not included unless specified when ordering. Non-standard fittings available upon request.
To create your setup, look at the various sizes we have below. You can then contact a Distributor or Rep in your area to complete the process of ordering. If PDF drawing is available – click to download.
Applicator Tanks
| PN | Applicator Tanks | Length | Diameter | Height | Weight | Color | Model # | |
|---|---|---|---|---|---|---|---|---|
| 01-1737 | 20 Gallon / 76 Litre | 31 in / 78.74 cm | 15 in / 38.10 cm | 18 in / 45.72 cm | 14 Lbs / 6 Kg | White | 61737 | PDF Document |
| 01-1740 | 30 Gallon / 114 Litre | 21 in / 53.34 cm | 23 in / 58.42 cm | 26 in / 66.04 cm | 14 Lbs / 6 Kg | White | 41799 | PDF Document |
| 01-1746 | 55 Gallon / 208 Litre | 34 in / 86.36 cm | 23 in / 58.42 cm | 27 in / 68.58 cm | 21 Lbs / 10 Kg | White | 45193 | PDF Document |
| 01-1748 | 85 Gallon / 322 Litre | 52 in / 132.08 cm | 23 in / 58.42 cm | 26 in / 66.04 cm | 29 Lbs / 13 Kg | White | 45105 | PDF Document |
| 01-1724 | 100 Gallon / 379 Litre | 57 in / 144.78 cm | 24 in / 60.96 cm | 28 in / 71.12 cm | 36 Lbs / 16 Kg | White | 60204 | PDF Document |
| 01-1725 | 110 Gallon / 416 Litre | 41 in / 104.14 cm | 30 in / 76.20 cm | 34 in / 86.36 cm | 41 Lbs / 19 Kg | White | 45053 | PDF Document |
| 01-1729 | 150 Gallon / 568 Litre | 58 in / 147.32 cm | 30 in / 76.20 cm | 33 in / 83.82 cm | 50 Lbs / 23 Kg | White | 40648 | PDF Document |
| 01-1727 | 150 Gallon / 568 Litre | 46 in / 116.84 cm | 32 in / 81.28 cm | 35 in / 88.90 cm | 47 Lbs / 21 Kg | White | 45117 | PDF Document |
| 01-1728 | 150 Gallon / 568 Litre | 50 in / 127.00 cm | 28 in / 71.12 cm | 41 in / 104.14 cm | 57 Lbs / 26 Kg | White | 40777 | PDF Document |
| 01-1734 | 200 Gallon / 757 Litre | 61 in / 154.94 cm | 24 in / 60.96 cm | 48 in / 121.92 cm | 82 Lbs / 37 Kg | White | 41305 | PDF Document |
| 01-1732 | 200 Gallon / 757 Litre | 62 in / 157.48 cm | 32 in / 81.28 cm | 35 in / 88.90 cm | 63 Lbs / 29 Kg | White | 45059 | PDF Document |
| 01-1731 | 200 Gallon / 757 Litre | 47 in / 119.38 cm | 38 in / 96.52 cm | 42 in / 106.68 cm | 60 Lbs / 27 Kg | White | 45061 | PDF Document |
| 01-1738 | 300 Gallon / 1136 Litre | 68 in / 172.72 cm | 38 in / 96.52 cm | 41 in / 104.14 cm | 87 Lbs / 39 Kg | White | 40135 | PDF Document |
| 01-1742 | 400 Gallon / 1514 Litre | 74 in / 187.96 cm | 42 in / 106.68 cm | 45 in / 114.30 cm | 102 Lbs / 46 Kg | White | 40137 | PDF Document |
| 01-1744 | 500 Gallon / 1893 Litre | 75 in / 190.50 cm | 48 in / 121.92 cm | 51 in / 129.54 cm | 122 Lbs / 55 Kg | White | 40274 | PDF Document |
Elliptical Tanks
Elliptical Tanks
Designed for larger volume applicator needs; it features a low profile design and a low center of gravity for excellent visibility in the field and increased stability when towed. A deep sump permits complete drainage and the tank features an 8″ or 16″ fill-opening. The plastic tank is standard weight at 1.5 specific gravity.
| PN | Elliptical Tanks | Length | Diameter | Height | Weight | Color | Model # | |
|---|---|---|---|---|---|---|---|---|
| 01-25090 | 200 Gallon / 757 Litre | 66 in / 167.64 cm | 0 in / 0.00 cm | 30 in / 76.20 cm | 82 Lbs / 37 Kg | White | 41252 | PDF Document |
| 01-25096 | 300 Gallon / 1136 Litre | 70 in / 177.80 cm | 0 in / 0.00 cm | 36 in / 91.44 cm | 113 Lbs / 51 Kg | White | 40327 | PDF Document |
| 01-25097 | 500 Gallon / 1893 Litre | 82 in / 208.28 cm | 0 in / 0.00 cm | 44 in / 111.76 cm | 153 Lbs / 69 Kg | White | 40328 | PDF Document |
| 01-25098 | 750 Gallon / 2839 Litre | 88 in / 223.52 cm | 0 in / 0.00 cm | 48 in / 121.92 cm | 218 Lbs / 99 Kg | White | 40329 | PDF Document |
| 01-25099 | 1000 Gallon / 3785 Litre | 90 in / 228.60 cm | 0 in / 0.00 cm | 55 in / 139.70 cm | 283 Lbs / 128 Kg | White | 40330 | PDF Document |
| 01-30787 | 1600 Gallon / 6057 Litre | 138 in / 350.52 cm | 0 in / 0.00 cm | 54 in / 137.16 cm | 0 Lbs / 0 Kg | White | 47111 |
Skids
Applicator Tank Saddle Assemblies
| PN | Skid for Applicator Tanks | A | B | C | D | E | F | G | Weight | Model | Fits Tank PN |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 02-1741 | 30 Gallon | 3 in / 7.62 cm | 19 in / 48.26 cm | 13.5 in / 34.29 cm | 13.5 in / 34.29 cm | 2 x 54 in / 5.08 x 137.16 cm | 8 in / 20.32 cm | 7.75 in / 19.69 cm | 16 Lbs / 7 Kg | 60321 | 01-1740 |
| 02-1747 | 55 Gallon | 6 in / 15.24 cm | 18.125 in / 46.04 cm | 24 in / 60.96 cm | 24 in / 60.96 cm | 2 x 48 in / 5.08 x 121.92 cm | in / cm | 12 in / 30.48 cm | 22 Lbs / 10 Kg | 60303 | 01-1746 |
| 02-1749 | 85 Gallon | 6 in / 15.24 cm | 18.125 in / 46.04 cm | 24 in / 60.96 cm | 24 in / 60.96 cm | 2 x 48 in / 5.08 x 121.92 cm | in / cm | 12 in / 30.48 cm | 22 Lbs / 10 Kg | 60303 | 01-1748 |
| 02-1726 | 110 Gallon | 12 in / 30.48 cm | 23.75 in / 60.33 cm | 28.75 in / 73.03 cm | 34.75 in / 88.265 cm | 2 x 72 in / 5.08 x 182.88 cm | in / cm | 10.75 in / 27.31 cm | 47 Lbs / 21 Kg | 60315 | 01-1725 |
| 02-1730 | 150 Gallon | 12 in / 30.48 cm | 23.75 in / 60.33 cm | 28.75 in / 73.03 cm | 34.75 in / 88.265 cm | 2 x 72 in / 5.08 x 182.88 cm | in / cm | 10.75 in / 27.31 cm | 47 Lbs / 21 Kg | 60315 | 01-1727 & 01-1729 |
| 02-1736 | 200 Gallon | 6 in / 15.24 cm | 24.875 in / 63.18 cm | 36 in / 91.44 cm | 60 in / 152.4 cm | 2 x 96 in / 5.08 x 243.84 cm | 8 in / 20.32 cm | 13.25 in / 33.66 cm | 75 Lbs / 34 Kg | 63019 | 01-1732 |
| 02-1733 | 200 Gallon | 6 in / 15.24 cm | 24.75 in / 62.87 cm | 34 in / 86.36 cm | 42 in / 106.68 cm | 2 x 96 in / 5.08 x 243.84 cm | in / cm | 13.25 in / 33.66 cm | 57 Lbs / 26 Kg | 63020 | 01-1731 |
| 02-1739 | 300 Gallon | 6 in / 15.24 cm | 25.75 in / 65.41 cm | 34 in / 86.36 cm | 60 in / 152.4 cm | 3 x 96 in / 7.62 x 243.84 cm | 8 in / 20.32 cm | 12 in / 30.48 cm | 100 Lbs / 45 Kg | 63021 | 01-1738 |
| 02-1743 | 400 Gallon | 6 in / 15.24 cm | 30.125 in / 76.52 cm | 42.5 in / 107.95 cm | 60 in / 152.4 cm | 3 x 96 in / 7.62 x 243.84 cm | 8 in / 20.32 cm | 12 in / 30.48 cm | 130 Lbs / 59 Kg | 63022 | 01-1742 |
| 02-1745 | 500 Gallon | 6 in / 15.24 cm | 30.125 in / 76.52 cm | 42.5 in / 107.95 cm | 60 in / 152.4 cm | 3 x 132 in / 7.62 x 335.28 cm | 8 in / 20.32 cm | 12 in / 30.48 cm | 138 Lbs / 63 Kg | 63023 | 01-1744 |
Elliptical Skids
Unit consists of a black skid and appropriate bands and hardware to support the Elliptical Tank. The skids come with a pre-cut hole designed to fit sumps.
| PN | Skid for Elliptical Tanks | A | B | C | D | E | F | Weight | Model | For Tank PN |
|---|---|---|---|---|---|---|---|---|---|---|
| 02-25091 | 200 Gallon | 4 in / 10.16 cm | 24 in / 60.96 cm | 52 in / 132.08 cm | 57 in / 144.78 cm | 2 x 68 in / 5.08 x 172.72 cm | 8 in / 20.32 cm | 47 Lbs / 21 Kg | 63015 | 01-25090 |
| 02-25092 | 300 Gallon | 4 in / 10.16 cm | 34 in / 86.36 cm | 46.25 in / 117.48 cm | 54.25 in / 137.795 cm | 2 x 76 in / 5.08 x 193.04 cm | 8 in / 20.32 cm | 115 Lbs / 52 Kg | 63016 | 01-25096 |
| 02-25093 | 500 Gallon | 4 in / 10.16 cm | 34 in / 86.36 cm | 60 in / 152.40 cm | 68 in / 172.72 cm | 2 x 94 in / 5.08 x 238.76 cm | 8 in / 20.32 cm | 170 Lbs / 77 Kg | 63018 | 01-25097 |
| 02-25094 | 750 Gallon | 4 in / 10.16 cm | 38 in / 96.52 cm | 69.5 in / 176.53 cm | 78 in / 198.12 cm | 2 x 112 in / 5.08 x 284.48 cm | 8 in / 20.32 cm | 208 Lbs / 94 Kg | 60371 | 02-25094 |
| 02-25095 | 1000 Gallon | 4 in / 10.16 cm | 46 in / 116.84 cm | 60 in / 152.40 cm | 72 in / 182.88 cm | 2 x 130 in / 5.08 x 330.2 cm | 8 in / 20.32 cm | 232 Lbs / 105 Kg | 60372 | 01-25099 |
All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
