Gemini® Suction Tube Assembly

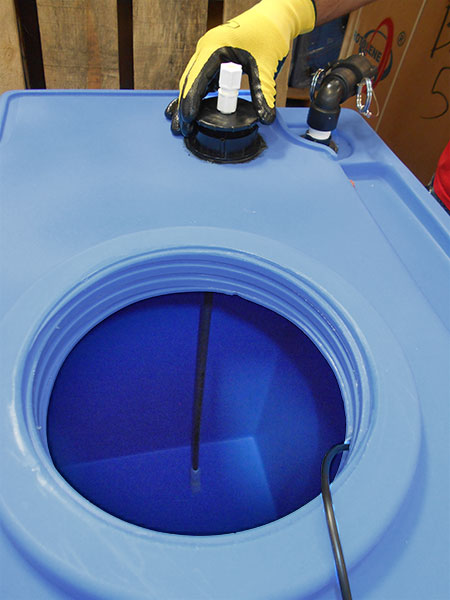

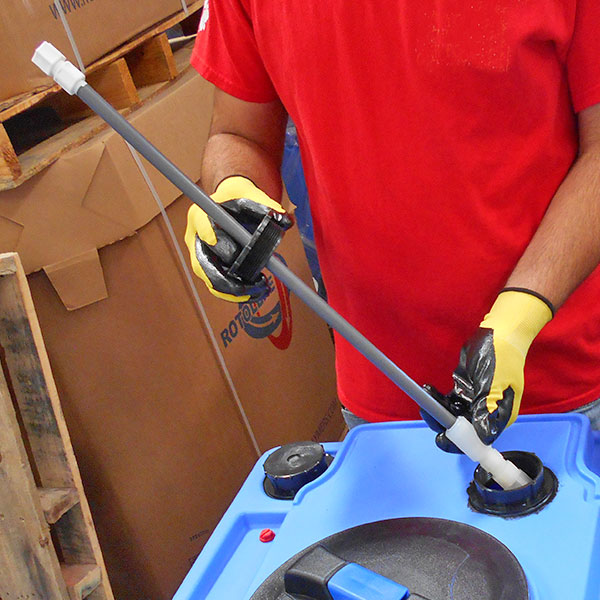

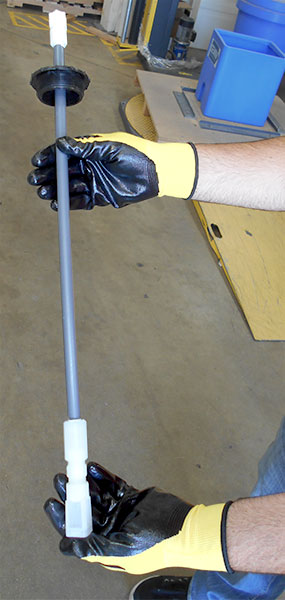

We have Gemini® Suction Tube Assembly for all tank sizes. There are different models for tanks under 60” and over 60”. Please specify tank size when ordering. Suction tubes are also available with or without 2” threaded plug connection for optional installation in either 2” female threaded port or pop-in plug/grommet assembly.
Contact a Distributor or Rep in your area to complete the process of ordering or call Customer Service for assistance 800-4-PEABODY.
| Description | PN |
|---|---|
| 1/4” OD PPL Tube Fitting on Rigid ¼” PVC Suction Pipe with PVDF Foot Valve – For tanks under 60” tall | 02-33352 |
| 3/8” OD PPL Tube Fitting on Rigid ¼” PVC Suction Pipe with PVDF Foot Valve – For tanks under 60” tall | 02-33353 |
| 1/4” OD PPL Tube Fitting on Rigid 1/4” PVC Suction Pipe with PVDF Foot Valve and 2” Top Plug - For tanks under 60” tall | 02-31800 |
| 3/8” OD PPL Tube Fitting on Rigid 1/4” PVC Suction Pipe with PVDF Foot Valve and 2” Top Plug – For tanks under 60” tall | 02-31801 |
| 1/4” OD PPL Tube Fitting on Rigid 1/4” PVC Suction Pipe with PVDF Foot Valve – For tanks 60” and taller | 02-33354 |
| 3/8” OD PPL Tube Fitting on Rigid 1/4” PVC Suction Pipe with PVDF Foot Valve – for Tanks 60” and taller | 02-33355 |
| 1/4” OD PPL Tube Fitting on Rigid 1/4” PVC Suction Pipe with PVDF Foot Valve and 2” Top Plug - For tanks 60” and taller | 02-33356 |
| 3/8” OD PPL Tube Fitting on Rigid 1/4” PVC Suction Pipe with PVDF Foot Valve and 2” Top Plug – for Tanks 60” and taller | 02-33357 |
All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
