LPE
Available upon request – additional charges may apply:
XLPE
PPL
PVDF
It looks like Javascript isn’t enabled in your browser. Please enable it in order to fill out this form.

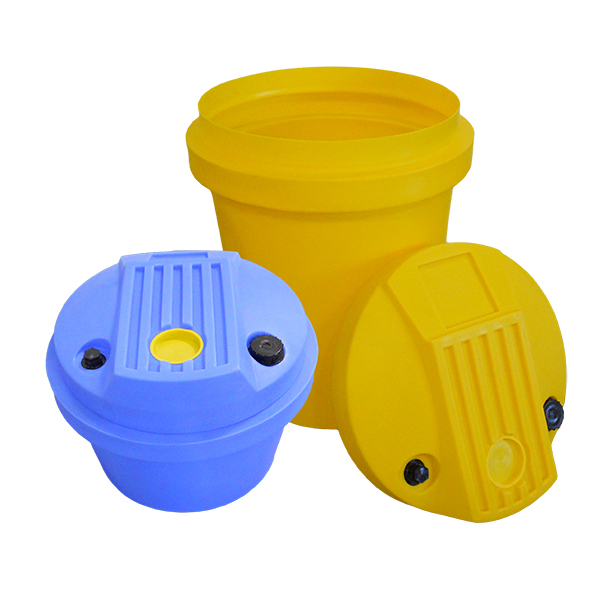

Aquarius Tapered Chemical Feed Tanks are Tapered and Nestable to save you money on shipping and storage. These PE chemical feed tanks have a 22° mixer mounting surface and 100# rated pump surface with recessed collection reservoir. 4” inspection port, and (2) 2” FNPT fittings. Aquarius Tapered Chemical Feed Tanks are perfect for the water treatment industry. Standard colors are Translucent white, Gemini blue, yellow, or black. Other custom colors available on request. Standard tanks are molded in LPE and NSF/ANSI/CAN 61 Certified. XLPE, PPL and PVDF available on request.
To create your setup, look at the various sizes we have below. You can then contact a Distributor or Rep in your area to complete the process of ordering. If image is available, hover over for larger view. If PDF drawing is available – click to download.
| Tank Size | Image | PN - 1/8" Wall | PN - 3/16" Wall | PN - 5/16" Wall | Diameter | Height | Color | |
|---|---|---|---|---|---|---|---|---|
| 30 Gallon |  | 01-28643 | 01-28647 | 27" | 21.25" | Blue | PDF Drawing | |
| 30 Gallon |  | 01-34849 | 01-28641 | 01-28645 | 27" | 21.25" | Natural | PDF Drawing |
| 30 Gallon |  | 01-28642 | 01-28646 | 27" | 21.25" | Yellow | PDF Drawing | |
| 30 Gallon |  | 01-28644 | 01-28648 | 27" | 21.25" | Black | PDF Drawing | |
| 55 Gallon |  | 01-28651 | 01-28655 | 27" | 35.5" | Blue | PDF Drawing | |
| 55 Gallon |  | 01-34850 | 01-28649 | 01-28653 | 27" | 35.5" | Natural | PDF Drawing |
| 55 Gallon |  | 01-28650 | 01-28654 | 27" | 35.5" | Yellow | PDF Drawing | |
| 55 Gallon |  | 01-28652 | 01-28656 | 27" | 35.5" | Black | PDF Drawing |
All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
