Polyester Fiberglass Construction

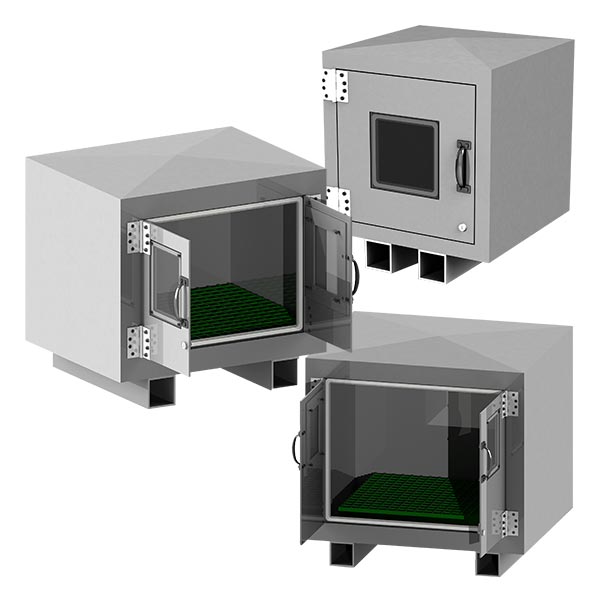

PCS-PRO Fiberglass Pump and Equipment Enclosures
We are pleased to offer our NEW line of PCS-PRO Fiberglass Pump and Equipment Enclosures. The systems come in (4) standard sizes, but you can order custom sizes as well, by simply adding inches to any of our standard model’s dimensions.
Use the PCS-PRO enclosures for larger chemfeed pumps, peristaltic pumps, double air diaphragm pumps, multiple pumps, or other process equipment in one enclosure. Almost unlimited size options.
Standard Features:
- Front opening doors with clear windows
- (2) 2” FPT outlets on each side for piping and electrical connections
- 1” Bottom sump drain outlet with PVC plug for drainage of leaks into proper collection sump.
- Integral containment sump with grate shelf for easy pump
mounting - Integral bottom external skids to elevate enclosure off the floor or
a shelf - Std. color is gray, but other colors are available on request
- Polyester fiberglass construction is standard
- Locking doors
- Detailed CAD submittal drawings for custom projects

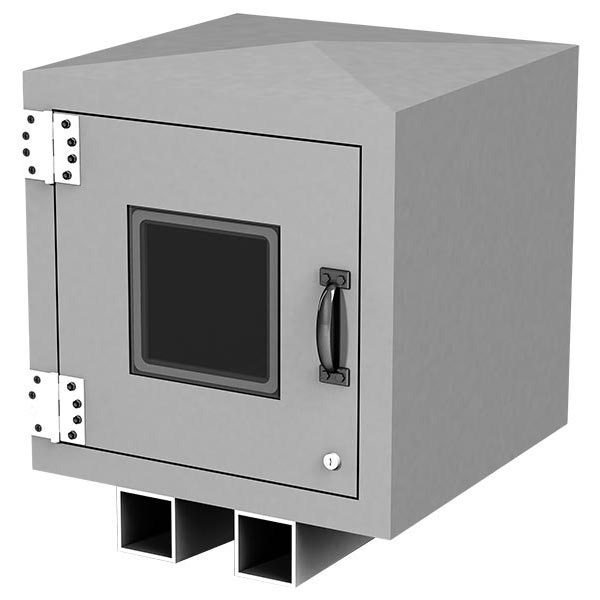

PCS-PRO 1 Closed

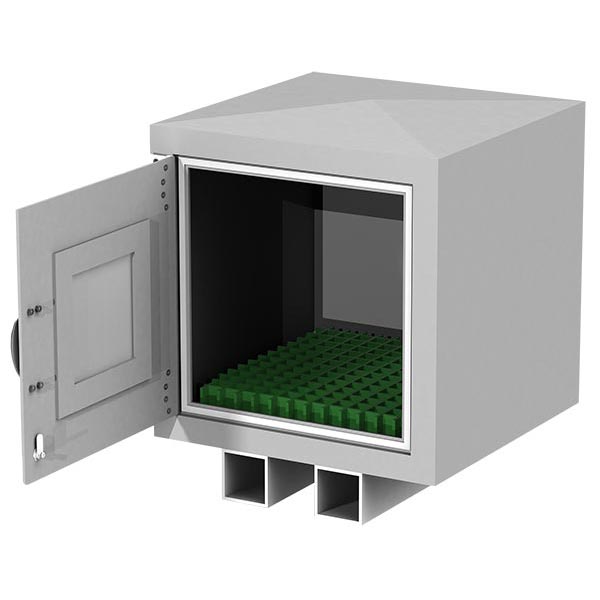

PCS-PRO 1 Open
PCS-PRO 2 Closed

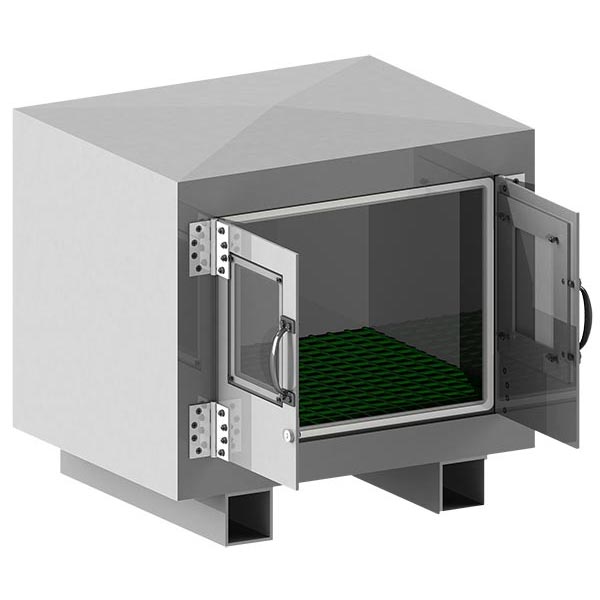

PCS-PRO 2 Open

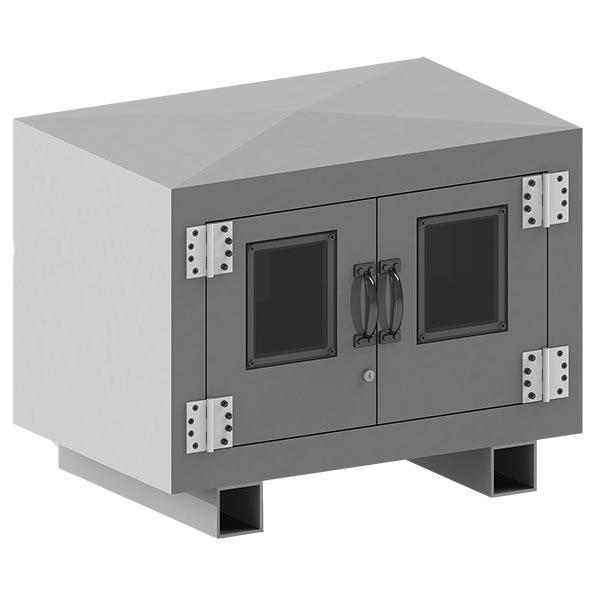

PCS-PRO 3 Closed

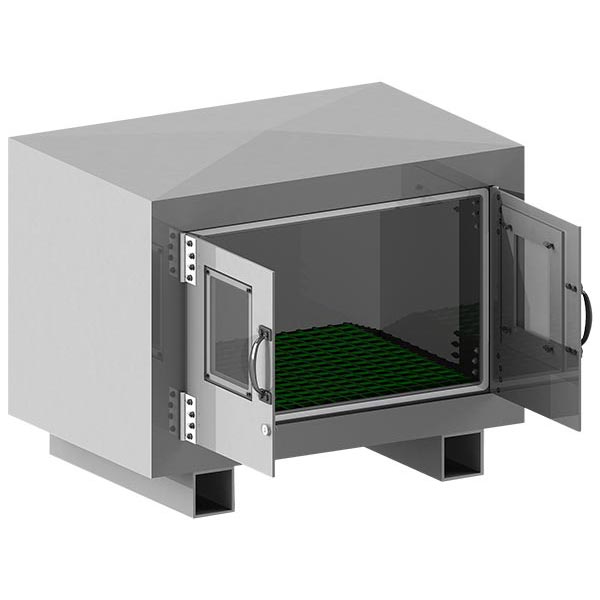

PCS-PRO 3 Open

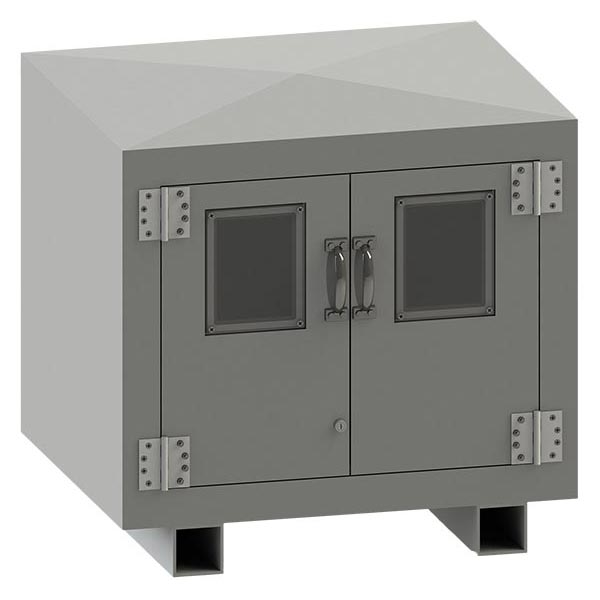

PCS-PRO 4 Closed

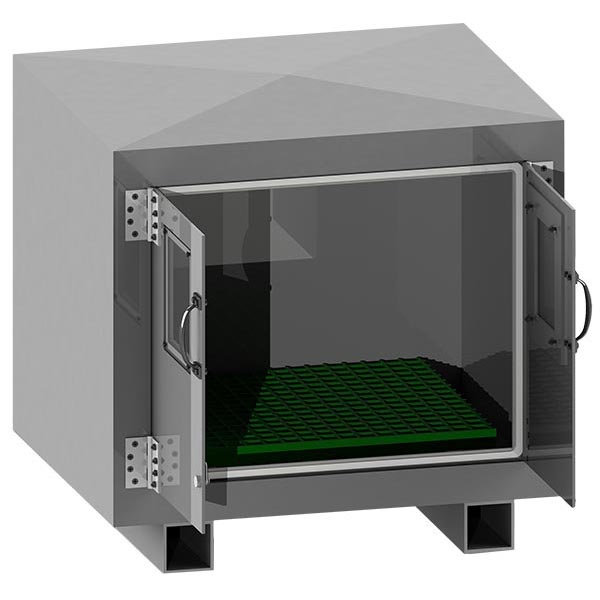

PCS-PRO 4 Open
Options:
- Custom colors
- Insulation, Heating, Cooling or Recirculation Fans
- Vinyl ester fiberglass construction available for more aggressive chemicals
- External mounting brackets for mounting from any side
- Integral legs to elevate enclosure to desired height
- Extra doors on sides or top
- Extra windows on sides or top
- Internal mounting brackets for coupon racks, piping, controllers, etc.
- Venting
- Lifting lugs
- Forklift slots
Go here for our PCS-PLUS Pump Containment Enclosure.
Go here for Climate Control Options available for the PCS-PRO.
To create your setup, look at the various sizes we have below. You can then contact a Distributor or Rep in your area to complete the process of ordering. If image is available, hover over for larger view. If PDF drawing is available – click to download.
| Description | Dimensions (L x W x H) | # of Doors | PN |
|---|---|---|---|
| PCS-PRO 1 | 24” x 24” x 24” | 1 | 253-33381 |
| PCS-PRO 2 | 30” x 24” x 24” | 2 | 253-33382 |
| PCS-PRO 3 | 36” x 24” x 24” | 2 | 253-33383 |
| PCS-PRO 4 | 36” x 30” x 30” | 2 | 253-33384 |
All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
