Welded Flanges

Polyethylene

      Welded Flanges – Polyethylene

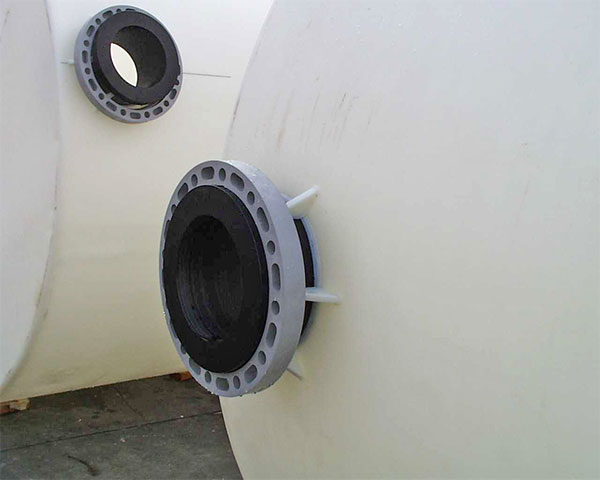

      Welded Flanges are designed for demanding applications where a bolted connection is necessary. Great for use with butterfly valves, expansions joints and any application where a permanent gasketless tank wall connection is desired. PVC Flange Rings are Van-Stone style so ring can be rotated to line up with companion flange. Flanges 2” and above include plate gussets for maximum strength. Price includes installation. Larger sizes available – call for pricing.



      SizeItem# of GussetsPNWeight
      .50 in / 1.27 cmWelded Flange with Ring402-150901 Lbs / 0 Kg
      .75 in / 1.905 cmWelded Flange with Ring402-150911 Lbs / 0 Kg
      1 in / 2.54 cmWelded Flange with Ring402-150922 Lbs / 1 Kg
      1.50 in / 3.81 cmWelded Flange with Ring402-150942 Lbs / 1 Kg
      2.0 in / 5.08 cmWelded Flange with Ring402-150953 Lbs / 1 Kg
      3 in / 7.62 cmWelded Flange with Ring402-150964 Lbs / 2 Kg
      1 in / 2.54 cmWelded Flange with Ring402-150974 Lbs / 2 Kg
      6 in / 15.24 cmWelded Flange with Ring402-1509810 Lbs / 5 Kg
      8 in / 20.32 cmWelded Flange with Ring602-1509912 Lbs / 5 Kg
      All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
      Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
      Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
