Available ASTM D-1998 rated and is available in LPE, HDPE, XLPE, PPL or PVDF construction. Additional charges may apply.

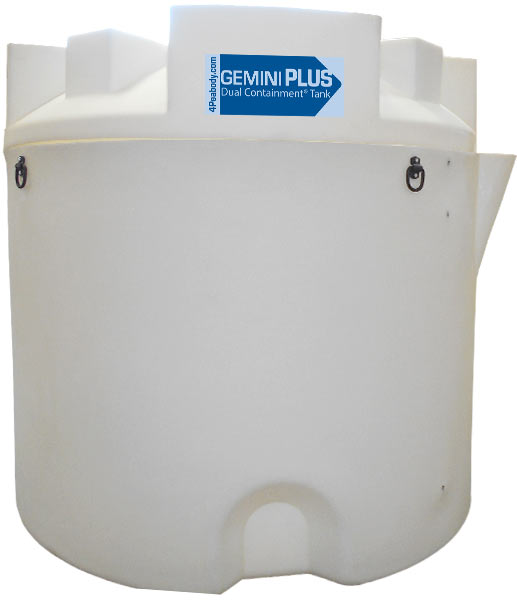

Gemini® PLUS Tanks
Our Gemini® PLUS Double Walled Chemical process and storage tank 1300-gallon size is designed with all the integral design features you need to make it simple and affordable to customize your tank for even the most demanding applications.
The Gemini® PLUS 1300 is is also available ASTM D-1998 rated and is available in LPE, XLPE, PPL or PVDF construction.
The base tank includes a large 16” OD threaded and vented access manway, heavy-duty D-ring lifting lugs and provisions for easy attachment of standard ladders, truck fill lines, top or bottom discharge assemblies, level and leak detection, seismic restraint packages and more. The Gemini® PLUS can be pre-fitted to your specifications at the factory or easily retro-fitted in the field.
Go here for Gemini Dual Containment® Tanks – Cylindrical
Go here for Gemini Dual Containment® Tanks – Square
Contact a Distributor or Rep in your area to complete the process of ordering or call Customer Service for assistance 800-4-PEABODY.
NSF/ANSI/CAN 61 Certified
- Tanks made from Linear Polyethylene (LPE) are ALS Group USA, Corp. NSF/ANSI/CAN 61 Certified.
- XLPE Tanks 40 gallons and up are Certified NSF/ANSI/CAN 61.
- PPL and PVDF Tanks of all sizes are Not Certified NSF/ANSI/CAN 61. Contact Customer Service for further info.
| Tank Size | Diameter | Height | Capacity Inner | Capacity Outer | Standard Natural 1.3 PN | ASTM D-1998 Natural 1.5 PN | ASTM D-1998 Natural 1.9 PN | XLPE Natural PN | XLPE ASTM D-1998 Natural 1.5 PN | XLPE ASTM D-1998 Natural 1.9 PN | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1300 G / 4921 L | 84 in / 213.36 cm | 82.5 in / 209.55 cm | 1300 G / 4921 L | 1430 G / 5413 L | 01-33362 | 01-33363 | 01-33364 | 01-33365 | 01-33366 | 01-33367 |
Gemini® PLUS Accessories
| Item | Gemini® PLUS Accessories | PN |
|---|---|---|
| A | 16" ID (18" OD) Vented Twist Lid (standard on Gemini PLUS) | 02-133 |
| B | (4) Lifting D-Rings (standard on Gemini PLUS) | 02-32866 |
| C | FRP Ladder with 18" x 24" Landing and attachment kit. | 27-32867 |
| D | Mini-Inverse level with 4" wide calibration board. | 02-32868 |
| E | 2" PVC fi ll line with Hayward true union PVC/EPDM ball valve, 45 degree ell, PPL male QC adaptor and dust cap with lanyard, plus attachment hardware. | 02-32869 |
| F | 2" Hayward PVC double wall bulkhead primary drain outlet fitting, using (3) EPDM gaskets, installed in "Mouse Cave". | 02-28853 |
| G | 2" PPL Bolted Style Full Port Compact ball valve, MPT x FPT, to be installed into double wall drain outlet. | 10-32870 |
| H | 3/4" Secondary space drain outlet: 3/4" Hayward PVC/EPDM bulkhead fitting installed on lower sidewall. | 02-54 |
| I | 3/4" Secondary valve drain kit: 3/4" PPL bolted style full port ball valve and 3/4" poly street ell. To be installed into secondary space drain outlet. | 02-32871 |
| J | 2" Top Suction Line with Dip Tube: includes 2" PVC union, 2" PVC dip tube, 2" PVC spring check valve, 2" polyethylene suction screen. | 02-32872 |
| K | Interstitial Leak Detection System: includes Battery powered, float style sensor with audible and visual alarm. Epoxy coated enclosure, PPL float, PVC coated cable | 24-32262 |
| L | 2" Top Extra Vent: includes 2" Norwesco PPL/EPDM bulkhead fitting and a PPL mushroom vent with poly screen | 02-32873 |
| M | (2) 3P Document Protectors, to be installed by customer in locations of choice | 02-31945 |
| N | 2" Top Auxiliary Outlet: 2" Hayward PVC/EPDM bulkhead fitting installed on top tank pedestal, location to be decided. | 02-32874 |
| Q | CAD submittal drawings: show all accessories on tank (not shown on drawing) | 272-32875 |
Yes you can. Our typical colors for our Gemini Tanks are Natural and Blue. However if you require a different color, contact our Customer Service Team Members and they can work with you on getting your specific tank color. There will be additional charges for custom colors and minimum order quantity.
All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
