      Value-Pak Gemini Square Tanks

      Value-Pak for Gemini Square TanksLooking for Value-Paks on our Gemini Dual Containment Tanks?!

      We just made it easier for you to order our popular Gemini double walled tank systems with a variety of added features and benefits.

      Choose from a Silver Pak if you only want to add a couple of extra features, a Gold Pak, for even more and a Platinum Pak, if you would like to have a very “feature rich” Gemini tank package!



      Tank Packages designed with our most popular options making Gemini Tank Systems simple, feature rich and easy to order.

      Go here if you looking for Value-Paks for Gemini Cylindrical Small Tanks.
      Go here if you looking for Value-Paks for Gemini Cylindrical Large Tanks.
      Go here to Request a Quote for Value-Pak Gemini Square Tanks.

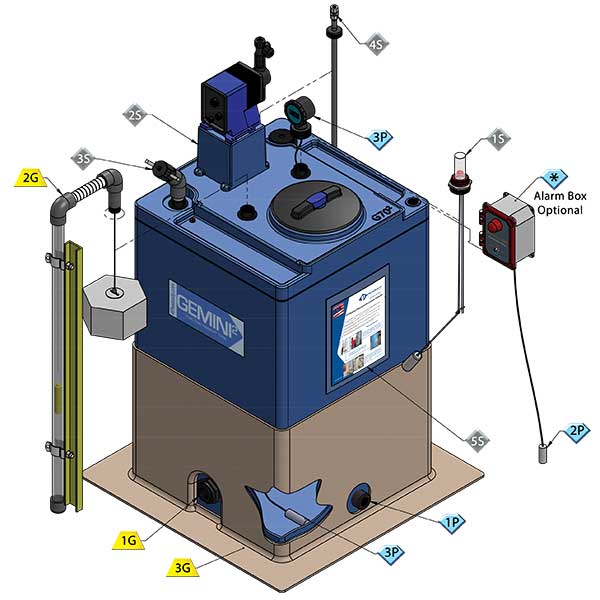

      Value-Pak Features

      VP FeaturesKey ID#PartDescriptions
      1 Silver-Plastic FittingsYour choice of PVC or PPL. Plastic fittings won’t corrode or rust over time and are very durable
      1 Silver-CAD DrawingsCAD Submittal Drawings are provided to ensure the tank meets the needs of your application
      1 Silver-Shipping PrepIncludes plastic wrap and palletizing to protect your tank from the elements during transit
      1 Silver1SFloat GaugeStainless Steel Float Level Gauge. (PVDF Float Gauge available call for pricing.)
      1 Silver2SPump Pup (not including Pump)Pump Pup Pump Pedestal to elevate your pump enough to allow for “easy” suction tubing connection
      1 Silver3S1” Fill Inlet with Quick Coupler1” QCA fill connection – includes male cam adapter and dust cap with lanyard
      1 Silver4SGemini Pump Suction Tube with Foot ValveGemini Pump Suction Tube with foot valve to make your chemical feed suction connection very easy
      1 Silver5S3P Document Protector3P Document Protector to attach important documents on the side of your tank, like safety info, SDS, etc.
      2 Gold-Silver FeaturesIncludes Following Silver Features: 2S, 3S, 4S, 5S
      2 Gold1GDouble Wall Bulkhead Bottom Drain Fitting1” Double wall bulkhead bottom drain fitting installed
      2 Gold2GMini-Inverse LevelMini-inverse Level Indication with 2” wide calibration board
      2 Gold3GNon-Code FiberRingNon-Code FiberRing restraint system
      3 Platinum-Silver and Gold FeaturesPlatinum Pak includes Silver Features: 2S, 3S, 4S, 5S and Gold Features 2G and 3G
      3 Platinum1PDouble Wall Welded Bottom Drain Fitting1" Double wall welded bottom drain fitting
      3 Platinum2PInterstitial Leak Detection SensorInterstitial Leak Detection Sensor (Alarm Box optional call for pricing)
      3 Platinum3PSubmersible Level SensorSubmersible level sensor + display and 4-20 mA signal output, 24 VDC powered

      Value-Pak Silver | Gold | Platinum

      VP TypeValue-Pak Tank SizePNLengthDiameterHeight
      1 Silver10 Gal293-3436014" 14" 22"
      1 Silver20 Gal293-3436118" 18" 24"
      1 Silver40 Gal293-3436220" 20" 37.25"
      1 Silver70 / 265293-3436324"24"41"
      1 Silver120 Gal Ribbed Outer Tank293-3436432"32"50"
      1 Silver175 Gal Ribbed Outer Tank293-3436535"35" 57"
      2 Gold10 Gal293-3436614" 14" 22"
      2 Gold20 Gal293-3436718" 18" 24"
      2 Gold40 Gal293-3436820" 20" 37.25"
      2 Gold70 / 265293-3436924"24"41"
      2 Gold120 Gal Ribbed Outer Tank293-3437032"32"50"
      2 Gold175 Gal Ribbed Outer Tank293-3437135"35" 57"
      3 Platinum10 Gal293-3437214" 14" 22"
      3 Platinum20 Gal293-3437318" 18" 24"
      3 Platinum40 Gal293-3437420" 20" 37.25"
      3 Platinum70 / 265293-3437524"24"41"
      3 Platinum120 Gal Ribbed Outer Tank293-3437632"32"50"
      3 Platinum175 Gal Ribbed Outer Tank293-3437735"35" 57"




      All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
      Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
      Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
