Value-Pak Double Wall Tanks (504 downloads)

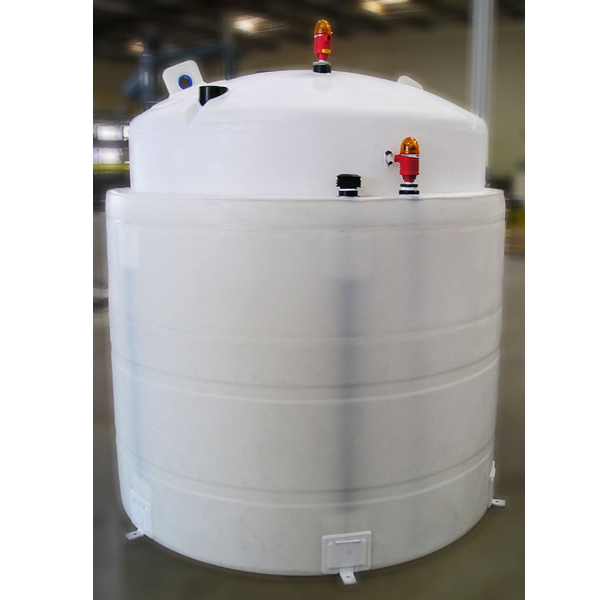

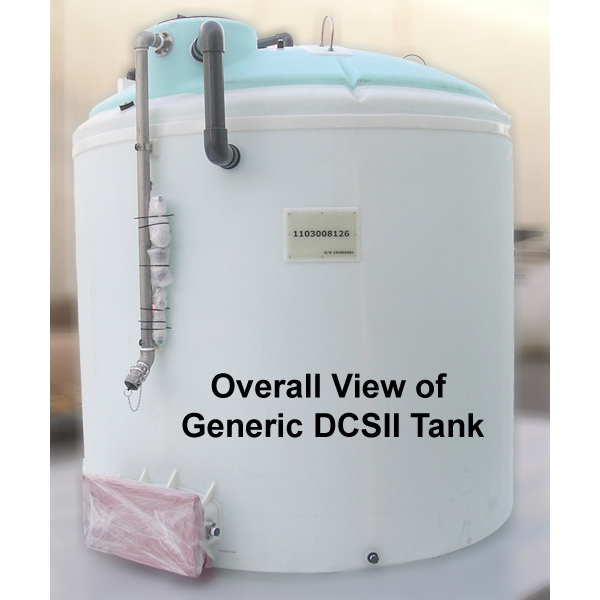

DCS – Double Containment Tanks.
DCS – Double Containment Tanks are manufactured from a high purity FDA approved HDPE (High Density Linear Polyethylene) resin. HDPE tanks have superior chemical resistance, extreme durability and excellent UV stabilizers, making them an ideal choice for a wide range of applications from food processing and semiconductor to heavy duty industrial chemical storage. Most of our tanks are also NSF 61 compliant.
HDPE resins are weldable, allowing for installation of welded process nozzles from 1/2” to 14” and larger if required. HDPE allows us to weld our DCS Double Walled Tank Systems together, making them a true one-piece double walled containment system.
Our tanks are rated for temperatures up to 120°F and higher with special upgraded enhancements upon request.
Our standard tanks are rated for 1.5 Specific Gravity contents. We offer 1.9 SPG tanks upon request.
Tank Packages designed with our most popular options making Dual Containment Tank Systems simple, feature rich and easy to order.
Go here if you are interested in Value-Paks for Single Wall Tanks.
| Coming Soon PDF’s for Value-Pak Accessories | ||
 |
 |
 |
Silver VP
| Key ID # | Part | Silver Description |
|---|---|---|
| - | Plastic Fittings | Your choice of PVC or PPL. Plastic fittings wont corrode or rust over time and are very durable |
| - | CAD Drawings | CAD Submittal Drawings are provided to ensure the tank meets the needs of your application |
| - | Shipping Prep | Includes heavy duty shrink wrap to protect your tank from the elements during transit |
| 1S | 2" Mushroom Vent | (2) Vents installed for interstitial venting |
| 2S | 2" Top Drain Outlet | FPT drain connection with diptube allows for quickly emptying primary tank |
| 3S | 2" Overflow | In case primary capacity is exceeded, liquid drains into interstitial secondary space |
| 4S | 18" OD Lid | Standard vented twist lid vents up to 450 gallons per minute during discharge or filling |
| 5S | 2" Fill | FPT fill connection high on tank sidewall |
| 6S | 1" Drain with Plug | Drain for secondary containment interstitial space, without disrupting liquid being held in primary. Optional shut off valve available |
Additional Double Wall Features and Adders
Additional options including seismic restraint systems, heating and insulation, fiberglass wraps, level control, etc. are available at an additional cost.
To create your setup, look at the various sizes we have below. You can then contact a Distributor or Rep in your area to complete the process of ordering.
| PN | Name | Diameter | Height |
|---|---|---|---|
| 293-29170 | 850 Gallon DCS Silver Value Pak | 64" | 118" |
| 293-31962 | 1000 Gallon DCS Silver Value Pak | 72" | 80" |
| 293-32259 | 1000 Gallon DCS Silver Value Pak | 87" | 80" |
| 293-29171 | 1100 Gallon DCS Silver Value Pak | 95" | 53" |
| 293-29172 | 1550 Gallon DCS Silver Value Pak | 95" | 67" |
| 293-29173 | 2100 Gallon DCS Silver Value Pak | 95" | 89" |
| 293-29174 | 2500 Gallon DCS Silver Value Pak | 102" | 91" |
| 293-29175 | 3000 Gallon DCS Silver Value Pak | 102" | 109" |
| 293-29176 | 4000 Gallon DCS Silver Value Pak | 119" | 125" |
| 293-29177 | 5000 Gallon DCS Silver Value Pak | 119" | 152" |
| 293-29178 | 6000 Gallon DCS Silver Value Pak | 119" | 182" |
| 293-29179 | 6500 Gallon DCS Silver Value Pak | 141" | 150" |
| 293-29180 | 7800 Gallon DCS Silver Value Pak | 141" | 176" |
| 293-29181 | 8400 Gallon DCS Silver Value Pak | 141" | 188" |
Gold VP
| Key ID # | Part | Gold Description |
|---|---|---|
| - | Silver Features | All features of Silver Pak are included with the following changes/additions |
| - | Polyethylene Welded Flanges or Couplings* | All Gold Tanks fitings are extusion welded and gasketless. Welded fittings provide for industrial grade reliability for all of your tank connections. Made from 100% polyethylene, these fittings are custom fabricated for optimum performance and chemical resistance |
| 1G | Lifting Lugs | Zinc plated lugs allow quick installation of tank by attaching and hoisting tank into position |
| 2G | Leak Detector | Optical leak detector alerts you of possible leak in secondary interstitial containment space |
| 3G | Drop Fill Line | Installed into Silver 2 Fill (5S), 42 up from the ground level for easy filling of tank. Includes ball valve, check valve, and PPL quick coupler and cap |

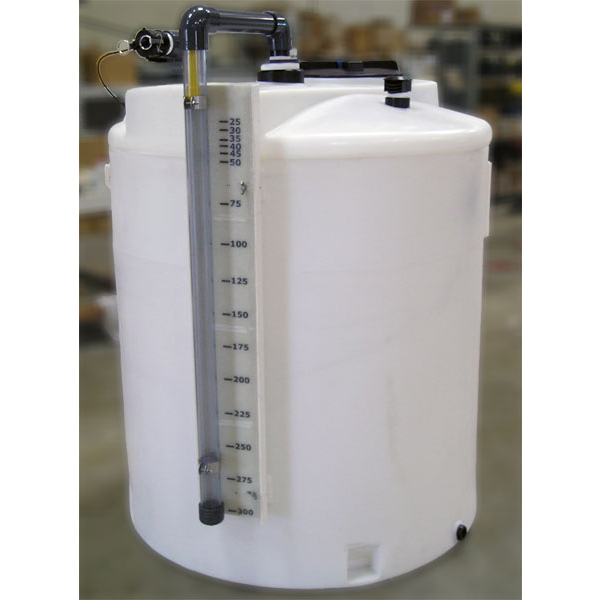

| 4G | Inverse Level Gauge | Standard with fiberglass encapsulated calibration chart in gallons to easily check fluid level from exterior of tank |
| *If desired, Stainless Steel Bulkhead fittings can be substituted at no additional cost |
Additional Double Wall Features and Adders
Additional options including seismic restraint systems, heating and insulation, fiberglass wraps, level control, etc. are available at an additional cost.
To create your setup, look at the various sizes we have below. You can then contact a Distributor or Rep in your area to complete the process of ordering.
| PN | Name | Diameter | Height |
|---|---|---|---|
| 293-29184 | 850 Gallon DCS Gold Value Pak | 64" | 118" |
| 293-29960 | 1000 Gallon DCS Gold Value Pak | 72" | 80" |
| 293-32260 | 1000 Gallon DCS Gold Value Pak | 87" | 80" |
| 293-29185 | 1100 Gallon DCS Gold Value Pak | 95" | 53" |
| 293-29186 | 1550 Gallon DCS Gold Value Pak | 95" | 67" |
| 293-29187 | 2100 Gallon DCS Gold Value Pak | 95" | 89" |
| 293-29188 | 2500 Gallon DCS Gold Value Pak | 102" | 91" |
| 293-29189 | 3000 Gallon DCS Gold Value Pak | 102" | 109" |
| 293-29190 | 4000 Gallon DCS Gold Value Pak | 119" | 125" |
| 293-29191 | 5000 Gallon DCS Gold Value Pak | 119" | 152" |
| 293-29192 | 6000 Gallon DCS Gold Value Pak | 119" | 182" |
| 293-29193 | 6500 Gallon DCS Gold Value Pak | 141" | 150" |
| 293-29194 | 7800 Gallon DCS Gold Value Pak | 141" | 176" |
| 293-29195 | 8400 Gallon DCS Gold Value Pak | 141" | 188" |
Platinum VP
| Key ID # | Part | Platinum Description |
|---|---|---|
| - | Silver and Gold Features | Platinum Pak includes all features of Silver and Gold Pak plus those seen and listed below (FRP Ladder and Side Access Box) |

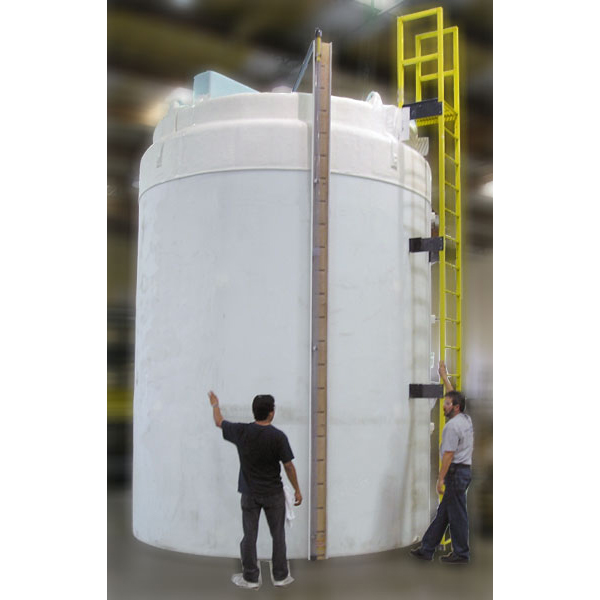

| 1P | FRP Ladder | FRP Ladders are OSHA compliant, corrosion resistant and attaches directly to tank for easy top access. All ladder systems come with required hardware included. |
| 2P | Side Access Box | Peabody Engineerings unique Side Access Box has a clear cover for visual interstitial leak detection. The flex-hose interconnection system allows for safe movement between the tank walls without putting stress on the lower drain outlet. |
Additional Double Wall Features and Adders
Additional options including seismic restraint systems, heating and insulation, fiberglass wraps, level control, etc. are available at an additional cost.
To create your setup, look at the various sizes we have below. You can then contact a Distributor or Rep in your area to complete the process of ordering.
| PN | Name | Diameter | Height |
|---|---|---|---|
| 293-29198 | 850 Gallon DCS Platinum Value Pak | 64" | 118" |
| 293-31963 | 1000 Gallon DCS Platinum Value Pak | 72" | 80" |
| 293-32261 | 1000 Gallon DCS Platinum Value Pak | 87" | 80" |
| 293-29199 | 1100 Gallon DCS Platinum Value Pak | 95" | 53" |
| 293-29200 | 1550 Gallon DCS Platinum Value Pak | 95" | 67" |
| 293-29201 | 2100 Gallon DCS Platinum Value Pak | 95" | 89" |
| 293-29202 | 2500 Gallon DCS Platinum Value Pak | 102" | 91" |
| 293-29203 | 3000 Gallon DCS Platinum Value Pak | 102" | 109" |
| 293-29204 | 4000 Gallon DCS Platinum Value Pak | 119" | 125" |
| 293-29205 | 5000 Gallon DCS Platinum Value Pak | 119" | 152" |
| 293-29206 | 6000 Gallon DCS Platinum Value Pak | 119" | 182" |
| 293-29207 | 6500 Gallon DCS Platinum Value Pak | 141" | 150" |
| 293-29208 | 7800 Gallon DCS Platinum Value Pak | 141" | 176" |
| 293-29209 | 8400 Gallon DCS Platinum Value Pak | 141" | 188" |
