Value-Pak Gemini Cylindrical Large Tanks
Looking for Value-Paks on our Gemini Dual Containment Tanks?!
We just made it easier for you to order our popular Gemini double walled tank systems with a variety of added features and benefits.
Choose from a Silver Pak if you only want to add a couple of extra features, a Gold Pak, for even more and a Platinum Pak, if you would like to have a very “feature rich” Gemini tank package!
Tank Packages designed with our most popular options making Gemini Tank Systems simple, feature rich and easy to order.
Go here if you looking for Value-Paks for Gemini Cylindrical Small Tanks.
Go here if you looking for Value-Paks for Gemini Square Tanks.
Go here to Request a Quote for Value-Pak Gemini Cylindrical Large Tanks.
Value-Pak Features

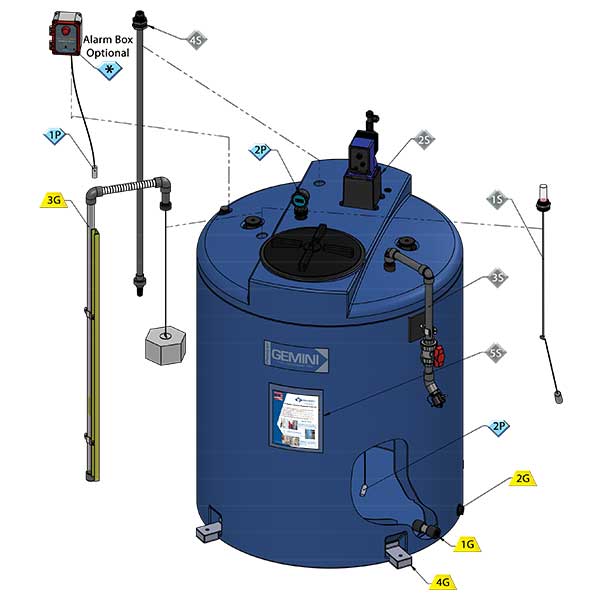

| VP Features | Key ID# | Part | Descriptions |
|---|---|---|---|
| 1 Silver | - | Plastic Fittings | Your choice of PVC or PPL. Plastic fittings won’t corrode or rust over time and are very durable |
| 1 Silver | - | CAD Drawings | CAD Submittal Drawings are provided to ensure the tank meets the needs of your application |
| 1 Silver | - | Shipping Prep | Includes plastic wrap and palletizing to protect your tank from the elements during transit |
| 1 Silver | 1S | Float Gauge | Stainless Steel Float Level Gauge. (PVDF Float Gauge available call for pricing.) |
| 1 Silver | 2S | Pump Pup (not including Pump) | Pump Pup Pump Pedestal to elevate your pump enough to allow for “easy” suction tubing connection |
| 1 Silver | 3S | 1” Fill Inlet with Quick Coupler | 1” QCA fill connection – includes male cam adapter and dust cap with lanyard |
| 1 Silver | 4S | Gemini Pump Suction Tube with Foot Valve | Gemini Pump Suction Tube with foot valve to make your chemical feed suction connection very easy |
| 1 Silver | 5S | 3P Document Protector | 3P Document Protector to attach important documents on the side of your tank, like safety info, SDS, etc. |
| 2 Gold | - | Silver Features | Includes Following Silver Features: 2S, 3S, 4S, 5S |
| 2 Gold | 1G | Double Wall Welded Bottom Drain Fitting | 1” FTP connection Double wall welded bottom drain fitting installed (for flange call Customer Service) |
| 2 Gold | 2G | HD Spinweld Fitting with Plug | 1” HD Spinweld Fitting with plug |
| 2 Gold | 3G | Mini-Inverse Level | Mini-inverse Level Indication with 2” wide calibration board |
| 2 Gold | 4G | Non-Code Steel Hold Down Lugs | Non-Code Steel hold down lugs (except for 160 gal which has a FiberRing) |
| 3 Platinum | - | Silver and Gold Features | Platinum Pak includes Silver Features: 2S, 3S, 4S, 5S and all Gold Features |
| 3 Platinum | 1P | Interstitial Leak Detection Sensor | Interstitial Leak Detection Sensor (Alarm Box optional call for pricing) |
| 3 Platinum | 2P | Submersible Level Sensor | Submersible level sensor + display and 4-20 mA signal output, 24 VDC powered |
Value-Pak Silver | Gold | Platinum
| VP Type | Value-Pak Tank Size | PN | Diameter | Height |
|---|---|---|---|---|
| 1 Silver | 160 Gal | 293-34348 | 34" | 68" |
| 1 Silver | 220 Gal | 293-34349 | 48" | 48" |
| 1 Silver | 320 Gal | 293-34350 | 48" | 60.5" |
| 1 Silver | 500 Gal | 293-34351 | 61" | 66.5" |
| 2 Gold | 160 Gal | 293-34352 | 34" | 68" |
| 2 Gold | 220 Gal | 293-34353 | 48" | 48" |
| 2 Gold | 320 Gal | 293-34354 | 48" | 60.5" |
| 2 Gold | 500 Gal | 293-34355 | 61" | 66.5" |
| 3 Platinum | 160 Gal | 293-34356 | 34" | 68" |
| 3 Platinum | 220 Gal | 293-34357 | 48" | 48" |
| 3 Platinum | 320 Gal | 293-34358 | 48" | 60.5" |
| 3 Platinum | 500 Gal | 293-34359 | 61" | 66.5" |
All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
