ProChem® Open Top Process Chemical Tanks

HDLPE

Available upon request – additional charges may apply:
HDXLPE
PPL
PVDF

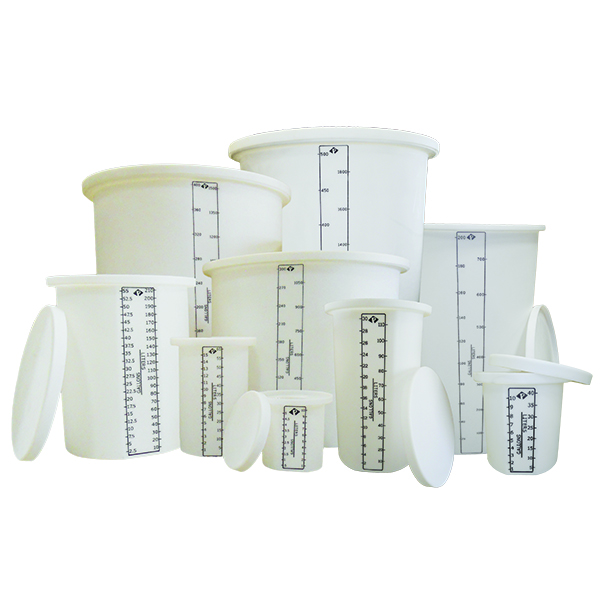

      Cylindrical High Density Polyethylene Open Top Tanks come standard with Dust Cover style lids.

      Our Open Top Tanks are standard natural polyethylene. Tanks are available in blue, black, or yellow for 10% adder. Flat side of wall with molded in calibration charts for quick level indication available on tanks that come standard with lid. Black lettering is available on these tanks at an additional charge. Tank diameter is of bottom cylinder, not overall lid dimension; height is from floor to top of lid.

      Open Top Tanks with HDLPE construction are Certified NSF/ANSI 61 Compliant.

      Go here for more information on Bolted Hinge Lid for your Open Top Tank.

      Do not use Tanks for Fuel Storage!

      To create your setup, look at the various sizes we have below. You can then contact a Distributor or Rep in your area to complete the process of ordering. If image is available, hover over for larger view. If PDF drawing is available – click to download.

      ImagePNNameService RatingShell DiameterOAHLid DiameterWeightColorPDF

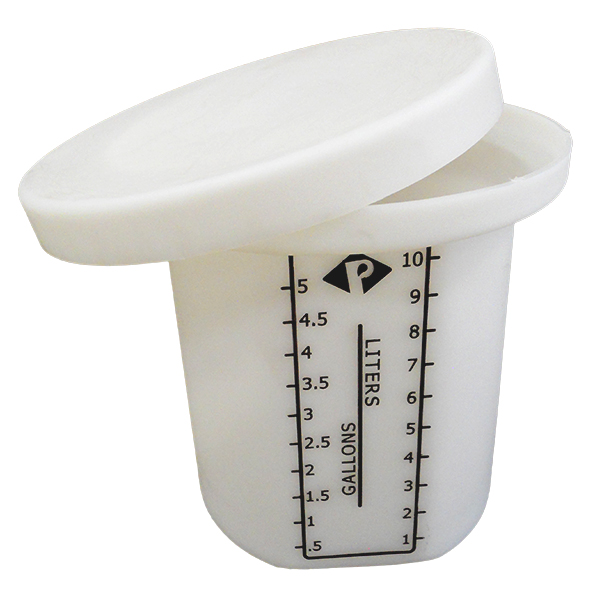

      Open Top Tank 5 Gallon Peabody Engineering
      01-289585 Gallon Open Top TankHDLPE 1.512 in / 30.48 cm15 in / 38.1 cm16 in / 40.64 cm6 Lbs / 3 KgNaturalPDF Document
      Open Top Tank 5 Gallon Peabody Engineering
      01-295935 Gallon Open Top TankHDLPE 1.512 in / 30.48 cm15 in / 38.1 cm16 in / 40.64 cm6 Lbs / 3 KgBluePDF Document
      Open Top Tank 10 Gallon Peabody Engineering
      01-2896010 Gallon Open Top TankHDLPE 1.515 in / 38.10 cm18 in / 45.72 cm19 in / 48.26 cm8 Lbs / 4 KgNaturalPDF Document
      Open Top Tank 10 Gallon Peabody Engineering
      01-2925210 Gallon Open Top TankHDLPE 1.515 in / 38.10 cm18 in / 45.72 cm19 in / 48.26 cm8 Lbs / 4 KgBluePDF Document
      N/A01-2943310 Gallon Open Top NESTABLE TankHDLPE 1.512 in / 30.48 cm24 in / 60.96 cm14 in / 35.56 cm6 Lbs / 3 KgNaturalN/A
      N/A01-2943410 Gallon Open Top NESTABLE TankHDLPE 1.512 in / 30.48 cm24 in / 60.96 cm14 in / 35.56 cm6 Lbs / 3 KgBlueN/A
      Open Top Tank 15 Gallon Peabody Engineering
      01-2896115 Gallon Open Top TankHDLPE 1.515 in / 38.10 cm25.5 in / 64.77 cm19 in / 48.26 cm12 Lbs / 5 KgNaturalPDF Document
      Open Top Tank 15 Gallon Peabody Engineering
      01-2947615 Gallon Open Top TankHDLPE 1.515 in / 38.10 cm25.5 in / 64.77 cm19 in / 48.26 cm12 Lbs / 5 KgBluePDF Document
      Open Top Tank 30 Gallon Peabody Engineering
      01-2896330 Gallon Open Top TankHDLPE 1.518 in / 45.72 cm32.5 in / 82.55 cm22 in / 55.88 cm15 Lbs / 7 KgNaturalPDF Document
      Open Top Tank 30 Gallon Peabody Engineering
      01-2959630 Gallon Open Top TankHDLPE 1.518 in / 45.72 cm32.5 in / 82.55 cm22 in / 55.88 cm15 Lbs / 7 KgBluePDF Document

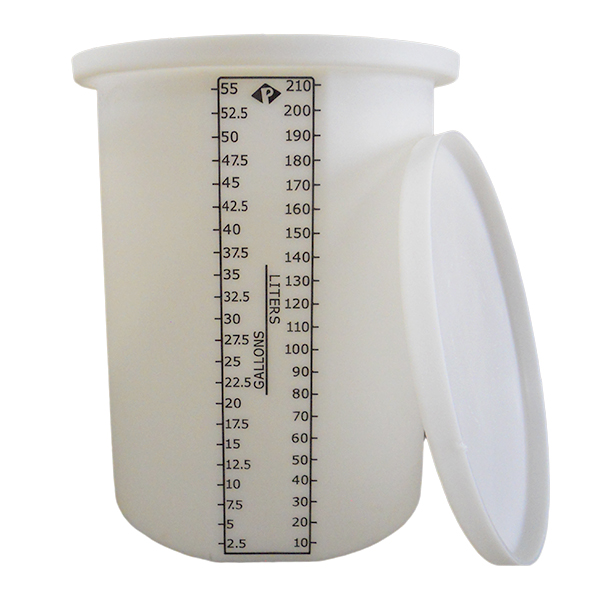

      Open Top Tank 55 Gallon Peabody Engineering
      01-2896455 Gallon Open Top TankHDLPE 1.524 in / 60.96 cm32.5 in / 82.55 cm28 in / 71.12 cm24 Lbs / 11 KgNaturalPDF Document
      Open Top Tank 55 Gallon Peabody Engineering
      01-2936655 Gallon Open Top TankHDLPE 1.524 in / 60.96 cm32.5 in / 82.55 cm28 in / 71.12 cm24 Lbs / 11 KgBluePDF Document
      Open Top Tank 100 Gallon Peabody Engineering
      01-28967100 Gallon Open Top TankHDLPE 1.530 in / 76.20 cm37.5 in / 95.25 cm34 in / 86.36 cm50 Lbs / 23 KgNaturalPDF Document
      N/A01-29599100 Gallon Open Top TankHDLPE 1.530 in / 76.20 cm37.5 in / 95.25 cm34 in / 86.36 cm50 Lbs / 23 KgBluePDF Document
      Open Top Tank 150 Gallon Peabody Engineering
      01-28969150 Gallon Open Top TankHDLPE 1.530 in / 76.20 cm54.5 in / 138.43 cm34.5 in / 87.63 cm60 Lbs / 27 KgNaturalPDF Document
      N/A01-29601150 Gallon Open Top TankHDLPE 1.530 in / 76.20 cm54.5 in / 138.43 cm34.5 in / 87.63 cm60 Lbs / 27 KgBluePDF Document
      Open Top Tank 200 Gallon Peabody Engineering
      01-28972200 Gallon Open Top TankHDLPE 1.534 in / 86.36 cm56.5 in / 143.51 cm38 in / 96.52 cm75 Lbs / 34 KgNaturalPDF Document
      N/A01-29604200 Gallon Open Top TankHDLPE 1.534 in / 86.36 cm56.5 in / 143.51 cm38 in / 96.52 cm75 Lbs / 34 KgBluePDF Document
      Open Top Tank 300 Gallon Peabody Engineering
      01-29052300 Gallon Open Top TankHDLPE 1.548 in / 121.92 cm43.5 in / 110.49 cm53 in / 134.62 cm100 Lbs / 45 KgNaturalPDF Document
      N/A01-29605300 Gallon Open Top TankHDLPE 1.548 in / 121.92 cm43.5 in / 110.49 cm53 in / 134.62 cm100 Lbs / 45 KgBluePDF Document
      Open Top Tank 400 Gallon Peabody Engineering
      01-29053400 Gallon Open Top TankHDLPE 1.548 in / 121.92 cm56.5 in / 143.51 cm53 in / 134.62 cm130 Lbs / 59 KgNaturalPDF Document
      N/A01-29606400 Gallon Open Top TankHDLPE 1.548 in / 121.92 cm56.5 in / 143.51 cm53 in / 134.62 cm130 Lbs / 59 KgBluePDF Document
      Open Top Tank 500 Gallon Peabody Engineering
      01-29054500 Gallon Open Top TankHDLPE 1.548 in / 121.92 cm70.5 in / 179.07 cm53 in / 134.62 cm160 Lbs / 73 KgNaturalPDF Document
      N/A01-29854500 Gallon Open Top TankHDLPE 1.548 in / 121.92 cm70.5 in / 179.07 cm53 in / 134.62 cm160 Lbs / 73 KgBluePDF Document
      Brand Name

      ProChem®

      All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
      Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
      Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
