LPE HD 1.9
Available upon request – additional charges may apply:
XLPE
PPL
PVDF
LPE SD 1.5
LPE HD 1.9
LPE HD 1.9
It looks like Javascript isn’t enabled in your browser. Please enable it in order to fill out this form.
Our Gemini² Dual Containment® Tanks are rated for a wide range of chemical applications.

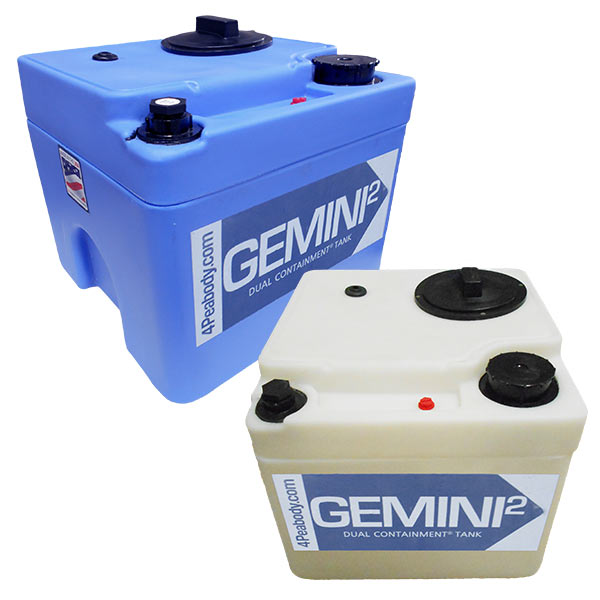

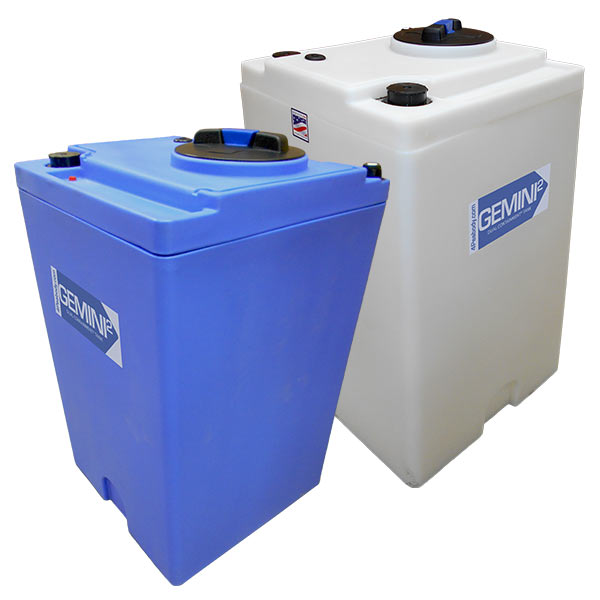

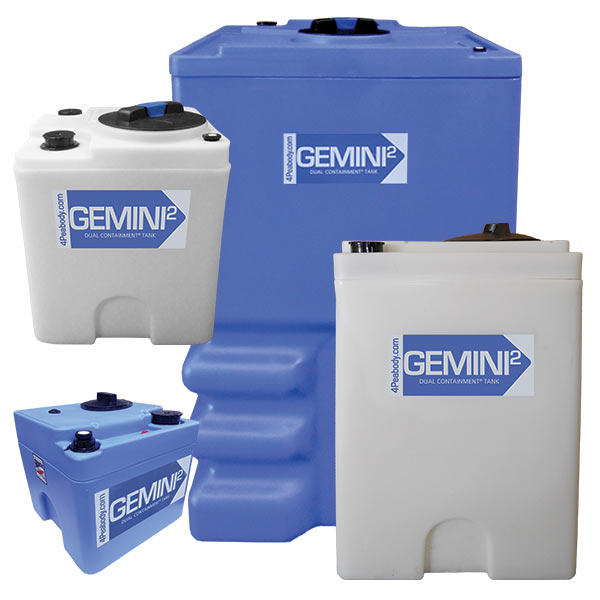

Gemini² Dual Containment® Tanks meet or exceed secondary containment regulations set under EPA 49CFR. These square tanks are designed with pump mounting surface, fittings per spec and 8” vented twist lid inspection port–non vented twist lid available. Recessed Mousedoor at bottom of tank for easy installation of bottom bulkhead for flooded suction draining.
They have the same great features and benefits as our Gemini Dual Containment® Tanks but have larger capacity per footprint, they have 22% more capacity than cylindrical tanks of the same size.
A large selection of standard accessories like suction tubes and level indicators compliment your tank for a complete, engineered dual containment tank solution. All of Peabody’s Gemini Dual Containment® Square Tanks meet or exceed secondary containment requirements under EPA’s 49 CFR Regulations.
Go here for Gemini Dual Containment® Tanks – Cylindrical.
Go here for our Gemini® PLUS 1300 Gallon Tank.
To create your setup, look at the various sizes we have below. You can then contact a Distributor or Rep in your area to complete the process of ordering. If image is available, hover over for larger view. If PDF drawing is available – click to download.
NSF/ANSI/CAN 61 Certified
- Tanks made from Linear Polyethylene (LPE) are ALS Group USA, Corp. NSF/ANSI/CAN 61 Certified.
- XLPE Tanks 40 gallons and up are Certified NSF/ANSI/CAN 61.
- PPL and PVDF Tanks of all sizes are Not Certified NSF/ANSI/CAN 61. Contact Customer Service for further info.
| Tank Size | Image | Length | Width | Height | Inner Capacity | Outer Capacity | LPE SD 1.5 Blue PN | LPE SD 1.5 Natural PN | LPE HD 1.9 Blue PN | LPE HD 1.9 Natural PN | XLPE SD 1.5 Natural PN | XLPE HD 1.9 Natural PN | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 005 Gal |  | 14 in | 14 in | 13.5 in | 005 Gal | 007 Gal | 01-31922 | 01-31923 | 01-31924 | 01-31925 | ♦ 01-31926 | ♦ 01-31927 | |
| 010 Gal |  | 14 in | 14 in | 22 in | 010 Gal | 013 Gal | 01-29816 | 01-29820 | 01-30044 | 01-30048 | ♦ 01-30146 | ♦ 01-30151 | |
| 020 Gal |  | 18 in | 18 in | 24 in | 020 Gal | 024 Gal | 01-29333 | 01-29371 | 01-30052 | 01-30056 | ♦ 01-30147 | ♦ 01-30152 | |
| 040 Gal |  | 20 in | 20 in | 37.25 in | 040 Gal | 054 Gal | 01-29655 | 01-29659 | 01-30060 | 01-30064 | 01-30148 | 01-30153 | |
| 070 Gal |  | 24 in | 24 in | 41 in | 070 Gal | 085 Gal | 01-29824 | 01-29828 | 01-30068 | 01-30072 | 01-30149 | 01-30154 | |
| 120 Gal Ribbed |  | 32 in | 32 in | 50 in | 120 Gal | 171 Gal | 01-32973 | 01-32974 | 01-32975 | 01-32976 | 01-32978 | 01-32980 | |
| 175 Gal Ribbed |  | 35 in | 35 in | 57 in | 175 Gal | 240 Gal | 01-33086 | 01-33088 | 01-33087 | 01-33089 | 01-33091 | 01-33093 | |
| 240 Gal Ribbed |  | 46 in | 46 in | 43.375 in | 240 Gal | 305 Gal | 01-35508 | 01-35509 | 01-35510 | 01-35511 | 01-35512 | 01-35513 | |
| 340 Gal Ribbed |  | 46 in | 46 in | 57.375 in | 340 Gal | 457 Gal | 01-35514 | 01-35515 | 01-35516 | 01-35517 | 01-35518 | 01-35519 |
Yes you can. Our typical colors for our Gemini Tanks are Natural and Blue. However if you require a different color, contact our Customer Service Team Members and they can work with you on getting your specific tank color. There will be additional charges for custom colors and minimum order quantity.
Our Gemini² Dual Containment™ Tanks range from 5 Gallons all the way up to 175 Gallons.
Category:
Gemini Square Tanks
All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
