Specialty Tanks
Browse our Specialty Tanks below and see the various sizes in the table.

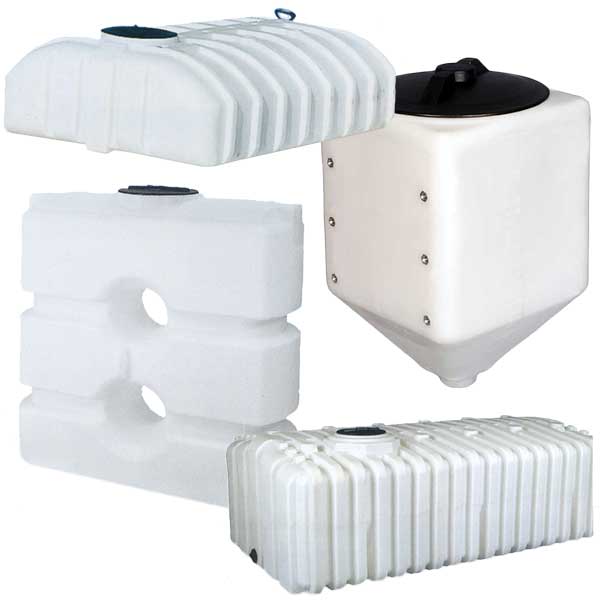

Total Drain Tanks
When needing a tank that provides complete drainage, the total drain plastic tank is the perfect choice. The fitting is installed in the bottom of the tank. Note: This is a non-stock item, the minimum order is 4 units and they are FOB Sheldon, IA.
Freestanding Water Tanks
The Specialty Freestanding Water Tanks have been designed with residential and commercial applications in mind. The dimensions of the plastic tanks allow them to fit through a conventional doorway. The design of these tanks allow them to be freestanding/self-supporting and eliminates the need for a steel frame.
Low Profile Water Tanks
This low profile plastic tank may be used for storage or transport. They are an excellent choice when height limitations are a factor and are the perfect height for putting under your cottage or cabin.
Horizontal Box Water Tank
The low profile design of this horizontal plastic tank makes it ideal for use on trailers or in the back of a truck. The slosh reduction ribs provide excellent structural support. It can also be used as a stationary water storage tank.
Click here if you need the Auto Detail/Graffiti Removal Tanks.
Note: Standard fittings are available on some models. Not included unless specified when ordering. Non-standard fittings available upon request.
To create your setup, look at the various sizes we have below. You can then contact a Distributor or Rep in your area to complete the process of ordering. If PDF drawing is available – click to download.
| Tank Type | Tank Size | PN | Width | Length | Height | |
|---|---|---|---|---|---|---|
| Total Drain Tanks | 5 Gal | 01-14856 | 11" | 11" | 18" | |
| Total Drain Tanks | 10 Gal | 01-167 | 13" | 13" | 21" | |
| Total Drain Tanks | 12 Gal | 01-14857 | 14" | 18" | 15" | |
| Freestanding Tanks | 250 Gal | 01-24945 | 29" | 62" | 40" | |
| Freestanding Tanks | 400 Gal | 01-29558 | 29" | 66" | 70" | |
| Freestanding Tanks | 400 Gal | 01-24951 | 30" | 63" | 68" | |
| Freestanding Tanks | 500 Gal | 01-29559 | 31" | 74" | 70" | |
| Freestanding Tanks | 1000 Gal | 01-30781 | 40" | 92" | 89" | |
| Low Profile Tanks | 1250 Gal | 01-24947 | 81" | 130" | 38" | |
| Low Profile Tanks | 1275Gal | 01-29560 | 84" | 126" | 36" | |
| Low Profile Tanks | 1500 Gal | 01-24952 | 81" | 130" | 44" | |
| Low Profile Tanks | 1600 Gal | 01-29561 | 84" | 126" | 42" | |
| Horizontal Box Tank | 2400 Gal | 01-24948 | 90" | 150" | 53" |
All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
