Gemini² MCU™ PDF (9768 downloads)
LPE
Gemini² MCU™ store multiple chemicals in a single, multi-compartment dual containment tank.
Configure two, three, or four different liquids in one compact space, with 2 separate containment chambers that is as flexible as you need it to be. The Gemini2 MCU™ (Multiple Chemical Unit) has individual primary Tanks available in 6 and 12-gallon sizes. Configure your tank with (2) 12-gallon tanks, (1) 12-gallon and (2) 6-gallon tanks or (4) 6-gallon tanks, all in one compact space. Great for Biocide/Inhibitor set-ups, Pool Chemical feed systems or any other application where you require multiple chemicals with limited space for storage.

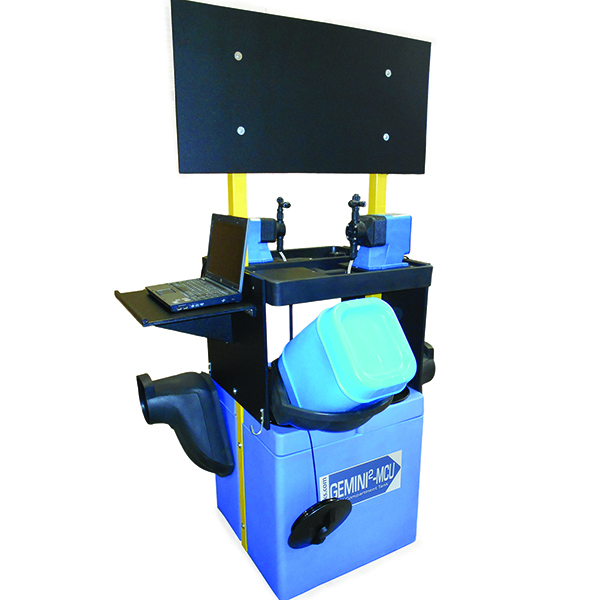

An optional overhead PumpDeck™ can be integrally mounted to the MCU™ with room for up to 4 metering pumps. The PumpDeck™ is designed to contain pump drips or minor spills that will drain back into the correct tank and can also be equipped with an alarm that will warn you of leaks in both the shelf and/ or the interstitial space before it’s a problem.
To create your setup, look at the various sizes we have below. You can then contact a Distributor or Rep in your area to complete the process of ordering. If image is available, hover over for larger view. If PDF drawing is available – click to download.
Gemini² MCU™
| PN | Image | Name | Service Rating | Length | Width | Height | |
|---|---|---|---|---|---|---|---|
| 01-31895 |  | Gemini² MCU - #1 Assembly | (2) 12 Galllon Tanks | LPE 1.5 | 25" | 25" | 25" | N/A |
| 01-31896 |  | Gemini² MCU - #2 Assembly | (1) 12 Galllon Tanks and (2) 6 Gallon Tanks | LPE 1.5 | 25" | 25" | 25" | N/A |
| 01-31897 |  | Gemini² MCU - #3 Assembly | (4) 6 Galllon Tanks | LPE 1.5 | 25" | 25" | 25" | N/A |
Individual Items
| PN | Name | Length | Width | Height | Color |
|---|---|---|---|---|---|
| 01-31894 | Gemini² MCU Outer Containment Tank | 25" | 25" | 22" | Blue |
| 01-31901 | Gemini² MCU Outer Containment Tank | 25" | 25" | 22" | Natural |
| 01-31891 | Gemini² MCU - 12 Gallon Inner | 12.5" | 6.25" | 24" | Blue |
| 01-31898 | Gemini² MCU - 12 Gallon Inner | 12.5" | 6.25" | 24" | Natural |
| 01-31892 | Gemini² MCU - 6 Gallon Inner Left | 6.25" | 6.25" | 24" | Blue |
| 01-31893 | Gemini² MCU - 6 Gallon Inner Right | 6.25" | 6.25" | 24" | Blue |
| 01-31899 | Gemini² MCU - 6 Gallon Inner Left | 6.25" | 6.25" | 24" | Natural |
| 01-31900 | Gemini² MCU - 6 Gallon Inner Right | 6.25" | 6.25" | 24" | Natural |
| 02-31940 | MCU PumpDeck |
MCU PumpDeck Additional Accessories
| Accessory Item | PN |
|---|---|
| MCU PumpDeck | 02-31940 |
| Control Panel Assembly with FRP Bracket | 02-31976 |
| ProChem® Funnel Hook Kit (4 hooks w/hardware) | 02-32354 |
| ProChem® Chemical Identifi cation Sticker | 02-32006 |
| 3P Weather-Resistant Document Protector Pack of 25 | 02-31945 |
| Acrylic Vertical Document Storage Rack | 02-32355 |
| Retractable HDPE Laptop Work Shelf | 02-32356 |
| MCU Rigid Pump Suction Tube/Check Valve Assembly | 02-31949 |
| Additional Baffl es to Isolate 6 Gallon Tank Containment Space | 02-33936 |
Yes you can. Our typical colors for our Gemini Tanks are Natural and Blue. However if you require a different color, contact our Customer Service Team Members and they can work with you on getting your specific tank color. There will be additional charges for custom colors and minimum order quantity.
Our Gemini² Dual Containment™ Tanks range from 5 Gallons all the way up to 175 Gallons.
Category:
Gemini Square Tanks
All dimensions and weights are approximate to the best of our knowledge. If exact size tolerances are required please contact our customer service department prior to ordering.
Notice: Prices listed are FOB point of manufacture. A handling fee of $35 will be added to drop ship orders less than $1,500.
Tanks shipped or will called from Corona will have a nominal freight-in surcharge added to price.
